INTERIOR LIGHTING CONTROL SYSTEM OPERATION

id091800526000

• The BCM changes the illumination condition and illumination level of the interior light (door position) according to whether the doors are opened or closed.

Conditions before operation

(All conditions met)

Operation conditions

Interior light

Cancel conditions

(Any conditions met)

Set illumination time

Illumination level

•  Ignition switch at LOCK or ACC position (IG OFF)

•  All doors are closed
(All door switches off)

Open any door

(Any door switch on)

Approx. 30 min

100 %

•  Close all doors
(All door switches off)

•  After set illumination time passes^*1

•  Key is removed from steering lock
(Keyless switch off)

•  All doors are closed
(All door switches off)

•  Driver-side door is locked
(Door lock-link switch at LOCK position)

Unlock driver-side door

(Door lock-link switch is unlocked)

Approx. 30 s

100 %

•  Turn ignition switch to ON position (IG ON)

•  Open any door
(Any door switch on)

•  Lock driver-side door
(Door lock-link switch at LOCK position)

•  After set illumination time passes^*1

•  Key is inserted into steering lock
(Keyless switch on)

•  All doors are closed
(All door switches off)

Remove key from steering lock

(Keyless switch off)

Approx. 15 s

100 %

•  Turn ignition switch to ON position (IG ON)

•  Open any door
(Any door switch on)

•  Lock driver-side door
(Door lock-link switch at LOCK position)

•  After set illumination time passes^*1

•  Ignition switch at LOCK or ACC position
(IG OFF)

•  Any door is open
(Any door switch on)

•  Driver-side door is unlocked
(Door lock-link switch is unlocked)

Close all doors

(All door switches off)

Approx. 15 s

60 %

•  Turn ignition switch to ON position (IG ON)

•  Open any door
(Any door switch on)

•  Lock driver-side door
(Door lock-link switch at LOCK position)

•  After set illumination time passes^*1

Conditions before operation (All conditions met)	Operation conditions	Interior light	Cancel conditions (Any conditions met)
• Ignition switch at LOCK or ACC position (IG OFF) • All doors are closed (All door switches off)	Open any door (Any door switch on)	Approx. 30 min	100 %	• Close all doors (All door switches off) • After set illumination time passes^*1
• Key is removed from steering lock (Keyless switch off) • All doors are closed (All door switches off) • Driver-side door is locked (Door lock-link switch at LOCK position)	Unlock driver-side door (Door lock-link switch is unlocked)	Approx. 30 s	100 %	• Turn ignition switch to ON position (IG ON) • Open any door (Any door switch on) • Lock driver-side door (Door lock-link switch at LOCK position) • After set illumination time passes^*1
• Key is inserted into steering lock (Keyless switch on) • All doors are closed (All door switches off)	Remove key from steering lock (Keyless switch off)	Approx. 15 s	100 %	• Turn ignition switch to ON position (IG ON) • Open any door (Any door switch on) • Lock driver-side door (Door lock-link switch at LOCK position) • After set illumination time passes^*1
• Ignition switch at LOCK or ACC position (IG OFF) • Any door is open (Any door switch on) • Driver-side door is unlocked (Door lock-link switch is unlocked)	Close all doors (All door switches off)	Approx. 15 s	60 %	• Turn ignition switch to ON position (IG ON) • Open any door (Any door switch on) • Lock driver-side door (Door lock-link switch at LOCK position) • After set illumination time passes^*1

＊1 :When the interior light is turned off under the cancel conditions, it turns on again if any of the following conditions are met.

• After closing all doors, any door is opened (All door switches off, then any door switch on)

• The ignition switch is turned to the ON position (IG ON)

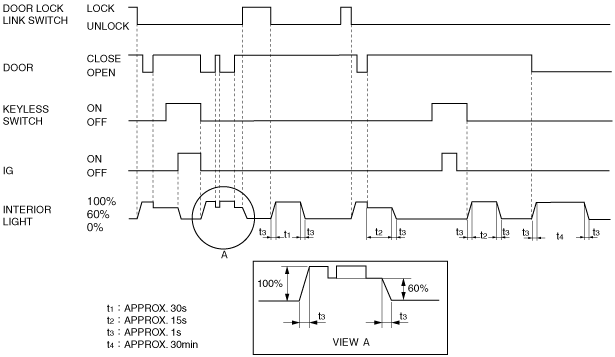

am2zzn00001081

Conditions before operation (All conditions met)	Operation conditions	Interior light		Cancel conditions (Any conditions met)
Conditions before operation (All conditions met)	Operation conditions	Set illumination time	Illumination level	Cancel conditions (Any conditions met)
• Ignition switch at LOCK or ACC position (IG OFF) • All doors are closed (All door switches off)	Open any door (Any door switch on)	Approx. 30 min	100 %	• Close all doors (All door switches off) • After set illumination time passes^*1
• Key is removed from steering lock (Keyless switch off) • All doors are closed (All door switches off) • Driver-side door is locked (Door lock-link switch at LOCK position)	Unlock driver-side door (Door lock-link switch is unlocked)	Approx. 30 s	100 %	• Turn ignition switch to ON position (IG ON) • Open any door (Any door switch on) • Lock driver-side door (Door lock-link switch at LOCK position) • After set illumination time passes^*1
• Key is inserted into steering lock (Keyless switch on) • All doors are closed (All door switches off)	Remove key from steering lock (Keyless switch off)	Approx. 15 s	100 %	• Turn ignition switch to ON position (IG ON) • Open any door (Any door switch on) • Lock driver-side door (Door lock-link switch at LOCK position) • After set illumination time passes^*1
• Ignition switch at LOCK or ACC position (IG OFF) • Any door is open (Any door switch on) • Driver-side door is unlocked (Door lock-link switch is unlocked)	Close all doors (All door switches off)	Approx. 15 s	60 %	• Turn ignition switch to ON position (IG ON) • Open any door (Any door switch on) • Lock driver-side door (Door lock-link switch at LOCK position) • After set illumination time passes^*1
