RAIN SENSOR REMOVAL/INSTALLATION

id091900474200

Caution

•   The reflection rate at the moment the ignition switch is first turned to the ON position after replacing the rain sensor with a new one is stored as the condition indicating no precipitation on the windshield. Therefore, remove water and dirt from the windshield before turning on the ignition switch.

•  Perform the rain sensor initialization in the following cases: (See RAIN SENSOR INITIAL SETTING.)

―  The windshield is replaced and the rain sensor is reused

―  The auto wiper system operates incorrectly

1.  Disconnect the negative battery cable.

2.  Insert a tape-wrapped flathead screwdriver into the notch on the rain sensor cover, turn it in the direction of the arrow shown in the figure, and detach the tab A.

adejjw00003446

3.  Remove the rain sensor cover in the direction shown in the figure.

adejjw00003422

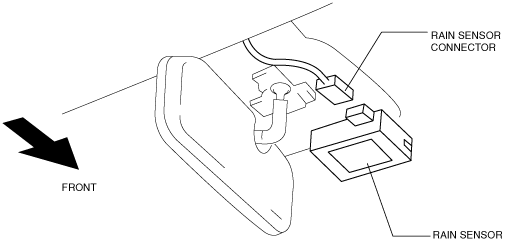

4.  Disconnect the rain sensor connector.

am2zzw00002619

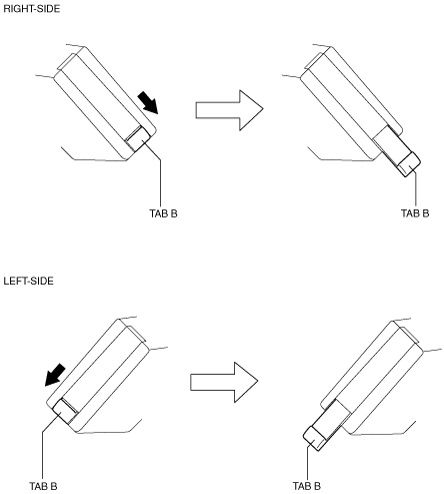

5.  Slide the tab B in the direction of the arrow and remove the rain sensor while supporting it with the hand.

am2zzw00002620

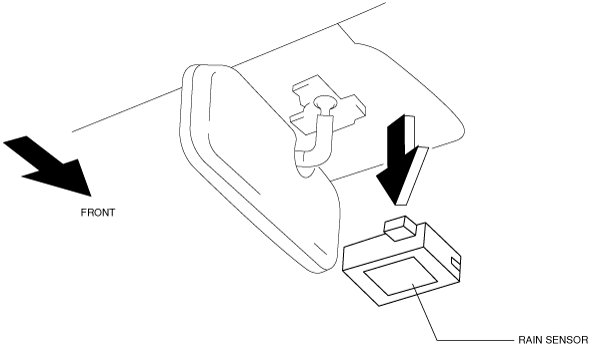

6.  Remove the rain sensor in the direction of the arrow shown in the figure.

am2zzw00002621

7.  Install in the reverse order of removal.
