WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION

id091900474800

1.  Disconnect the negative battery cable.

2.  Remove the windshield wiper arm. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

3.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

L.H.D.

adejjw00000867

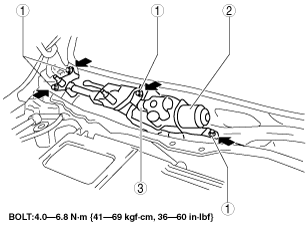

R.H.D.

am2zzw00002162

1	Bolt
2	Windshield wiper motor
3	Connector

5.  Install in the reverse order of removal.

6.  Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT.)
