REAR WIPER ARM AND BLADE ADJUSTMENT

id091900910200

1.  Turn off the rear wiper switch while operating the rear wiper motor to stop the rear wiper at the auto-stop position.

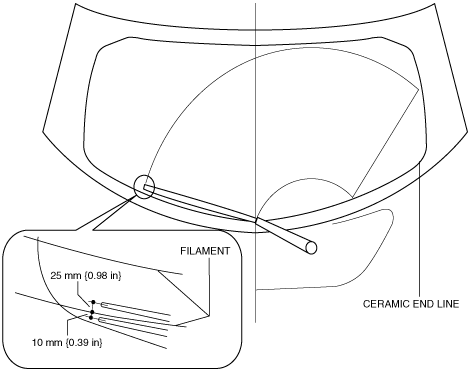

2.  Slide the serrated connecting part and position the rear wiper arm and blade as shown in the figure.

am2zzw00002256
