WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

id091900910400

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

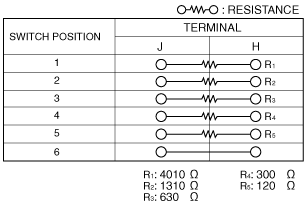

4.  Verify that the resistance and continuity between the windshield wiper and washer switch terminals as indicated in the table.

•  If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the windshield wiper and washer switch.

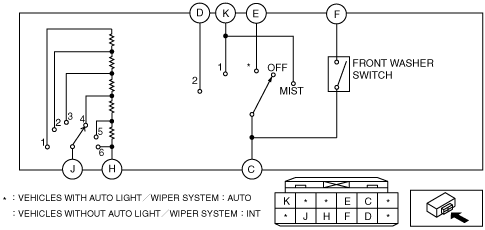

Vehicles With Wiper and Washer Switch on Left Side

am2zzw00002264

am2zzw00002265

am2zzw00002266

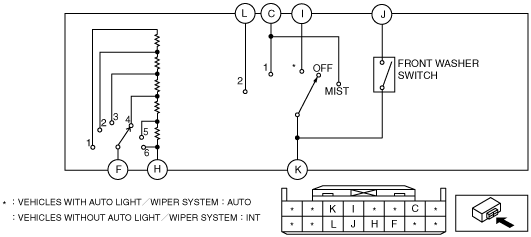

Vehicles With Wiper and Washer Switch on Right Side

am2zzw00000383

am2zzw00000384

am2zzw00000385
