SPEAKER CONSTRUCTION
id092000107900
6-speaker type
5HB

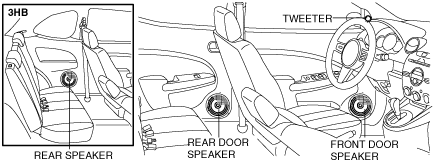

• The speakers are located inside the front and rear door trims. The tweeter is located inside the inner garnish.
3HB
• The speakers are located inside the front door trim and trunk side trim. The tweeter is located inside the inner garnish.
4-speaker type
5HB
• The speakers are located inside the front and rear door trims.
3HB
• The speakers are located inside the front door trim and trunk side trim.
2-speaker type
5HB
• The speakers are located inside the front door trim. A hole cover is attached to the rear door trim.
3HB
• The speakers are located inside the front door trim.
