CENTER PANEL UNIT DISASSEMBLY/ASSEMBLY

id092000800700

Note

•  When disassembling the center panel unit, it could get scratched if it is placed directly on the ground. When disassembling the center panel unit, spread a soft cloth underneath to perform the work.

1.  Disassemble in the order indicated in the figure.

2.  Assemble in the reverse order of disassembly.

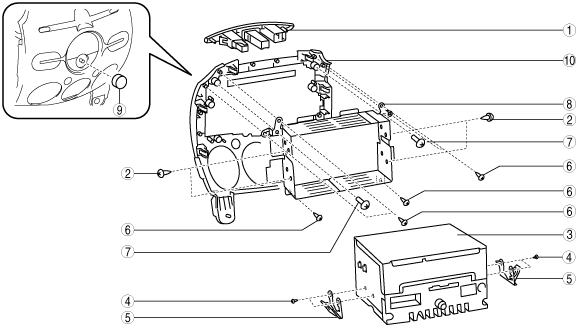

am2zzw00003312

1	Hazard warning switch panel (See Hazard Warning Switch Panel Removal Note.)
2	Screw
3	Audio unit
4	Screw
5	Bracket A
6	Screw
7	Screw
8	Bracket B
9	Knob
10	Center panel

Hazard Warning Switch Panel Removal Note

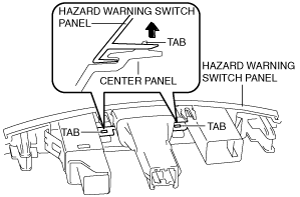

1.  Press the hazard warning switch panel upward in the direction of the arrow shown in the figure using a tape-wrapped fastener remover while avoiding the center panel tabs.

am2zzw00000392

2.  Remove the hazard warning switch panel in the direction of the arrow (2) shown in the figure while pressing the hazard warning switch panel clips indicated by the arrow (1).

am2zzw00000393
