AUXILIARY JACK REMOVAL/INSTALLATION

id092000809900

1.  Disconnect the negative battery cable.

2.  Remove the console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

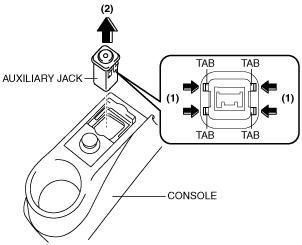

3.  Remove the auxiliary jack in the direction of the arrow (2) shown in the figure while pressing the auxiliary jack tabs in the direction of the arrow (1).

am2zzw00000228

4.  Install in the reverse order of removal.
