STEERING LOCK UNIT INSPECTION [WITH ADVANCED KEYLESS AND START SYSTEM]

id092100491800

1.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

2.  Measure each terminal voltage under the measurement condition.

•  If the voltage is not as specified in the terminal voltage table, inspect the parts under “Inspection item(s)”.

•  If the system does not work normally even though the inspection items are normal, replace the steering lock unit.

Terminal Voltage Table (Reference)

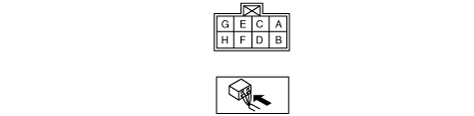

adejjw00000721

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item(s)
A
Push switch signal
Keyless control module
Start knob is pressed
B+
•  Keyless control module
•  Related wiring harness
Start knob is not pressed
1.0 or less
B
Power supply
Fuse
Under any condition
B+
•  Fuse
•  Related wiring harness
C
Key reminder switch signal
Keyless control module
Key is inserted
B+
•  Keyless control module
•  Related wiring harness
Key is not inserted
1.0 or less
D
―
―
―
−
−
E
Power supply
Fuse
Under any condition
B+
•  Fuse
•  Related wiring harness
F
―
―
―
―
―
G
Serial communication
Keyless control module
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
H
Ground
Body ground
Under any condition
1.0 or less
•  Related wiring harness
