INSTRUMENT CLUSTER SYSTEM WIRING DIAGRAM [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)]

INSTRUMENT CLUSTER SYSTEM WIRING DIAGRAM [MZ-CD 1.4 DI Turbo, MZ-CD 1.6 (Y6)]

id0922005288j5

am2zzn00000916

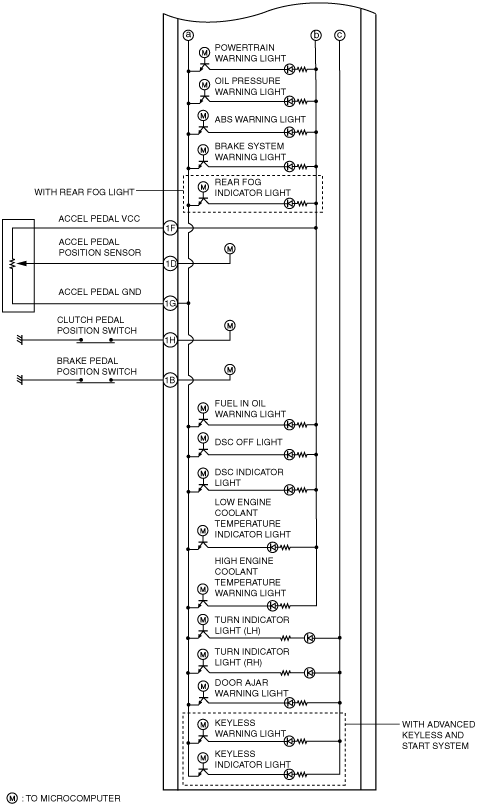

am2zzn00000917
