KEY REMINDER WARNING ALARM CONSTRUCTION/OPERATION
id092200641800

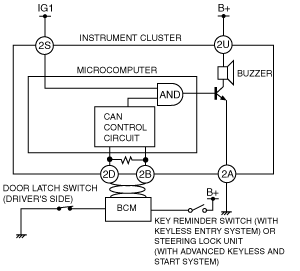

System Wiring Diagram
Operation
• A beeper in the instrument cluster sounds intermittently if all of the following three conditions are met:
-
― Ignition switch is at LOCK or ACC position
― Key is inserted in steering lock (Key reminder switch is ON)
― Driver's door is open (Driver's door latch switch is on)
