SEAT BELT WARNING ALARM CONSTRUCTION/OPERATION
id092200641900

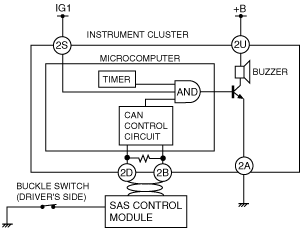

System Wiring Diagram
Operation
Australian, European (L.H.D. U.K.) specs.
• A beeper in the instrument cluster sounds intermittently for approx. 90—96 s if all of the following three conditions are met:
-
― Ignition switch is in ON position
― Driver's seat belt is unfastened
― Vehicle speed is approx. 15—20 km/h {9.4—12.0 mph} or more
General (L.H.D.) specs.
• A beeper in the instrument cluster sounds intermittently for approx. 32—34 s if all of the following three conditions are met:
-
― Ignition switch is in ON position
― Driver's seat belt is unfastened
― Vehicle speed is approx. 15—20 km/h {9.4—12.0 mph} or more
