PASSENGER SEAT BELT REMINDER INDICATOR CONSTRUCTION/OPERATION
id092200970100

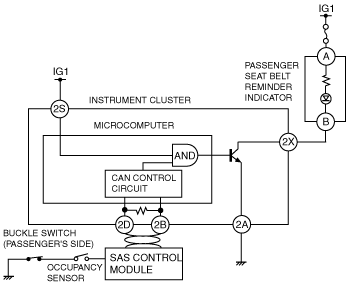

System Wiring Diagram
Operation
• Illuminates the front passenger seat belt reminder indicator light if the all of the following conditions are met.
-
― Ignition switch is in ON position
― Front passenger seat belt is unfastened
― Vehicle speed is approx. 20 km/h {12 mph} or more
