APRON REINFORCEMENT (LOWER) REMOVAL [PANEL REPLACEMENT]

id098008741300

Symbol Mark

am2zzb00000064

Removal Procedure

1.  Drill the 2 locations indication shown in the figure.

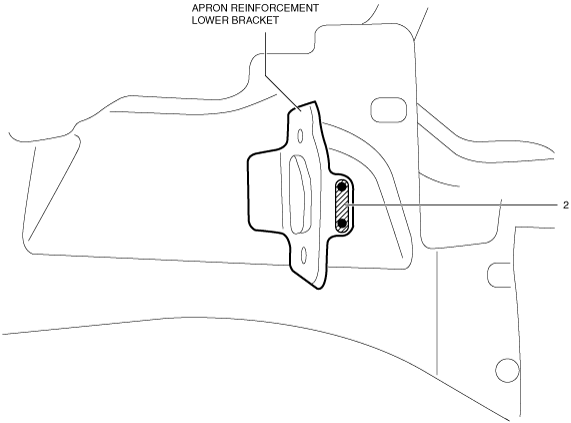

am2zzb00000065

2.  Remove the apron reinforcement lower bracket.

3.  Drill the 17 locations indication shown in the figure.

am2zzb00000066

4.  Remove the apron reinforcement (lower).
