APRON REINFORCEMENT (LOWER) INSTALLATION [PANEL REPLACEMENT]

id098008741400

Symbol Mark

am2zzb00000067

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

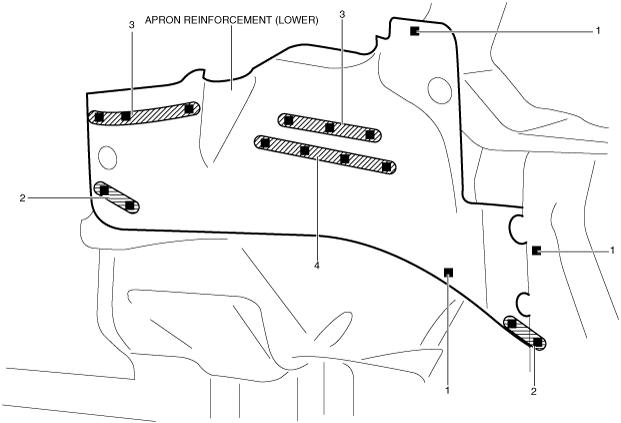

4.  Plug weld the 17 locations indicated shown in the figure.

am2zzb00000068

5.  Install the apron reinforcement (lower).

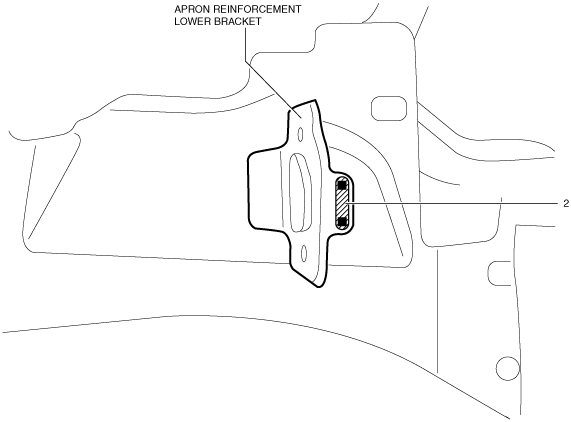

6.  Plug weld the 2 locations indicated shown in the figure.

am2zzb00000069
