FRONT SIDE FRAME COMPONENT INSTALLATION [PANEL REPLACEMENT]

id098008742000

Symbol Mark

am2zzb00000290

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

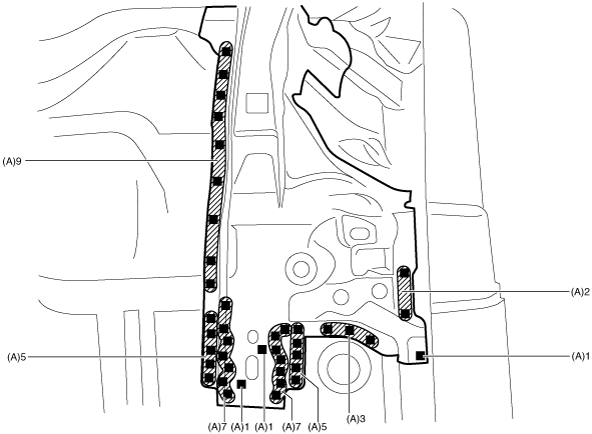

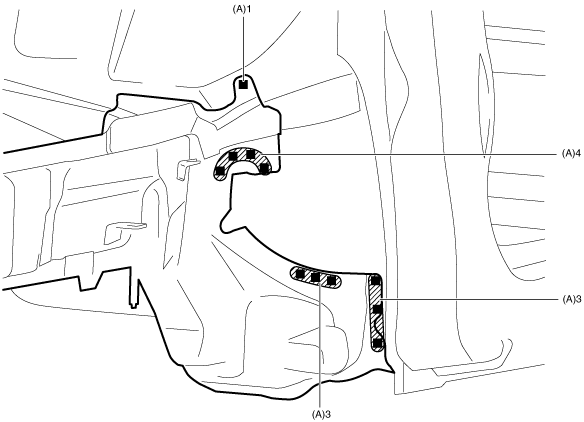

4.  Plug weld the 57 locations indicated by (A) shown in the figure.

am2zzb00000291

am2zzb00000292

am2zzb00000293

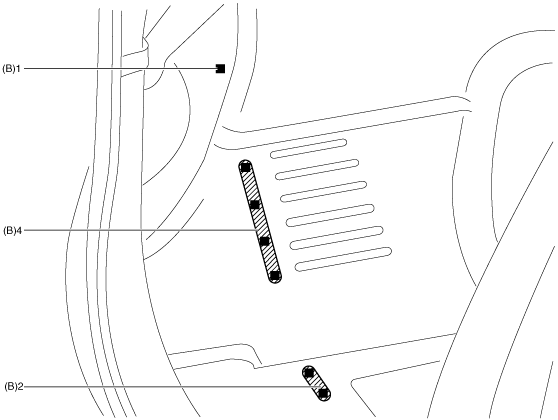

5.  Plug weld the 7 located indicated by (B) shown in the figure.

am2zzb00000294

Note

•  Plug weld the 7 locations indicated by (B) from the interior.
