FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008742100

Symbol Mark

am2zzb00000082

Removal Procedure

1.  Rough cut area (A), drill the 6 locations indicated by (B) shown in the figure.

am2zzb00000002

2.  Remove the front side frame (inner).

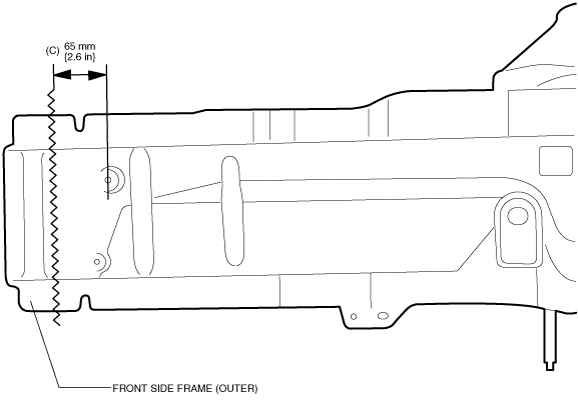

3.  Rough cut area (C) shown in the figure.

am2zzb00000003
