REAR FLOOR PAN REMOVAL [PANEL REPLACEMENT]

id098008742700

Symbol Mark

am2zzb00000187

Installation Procedure

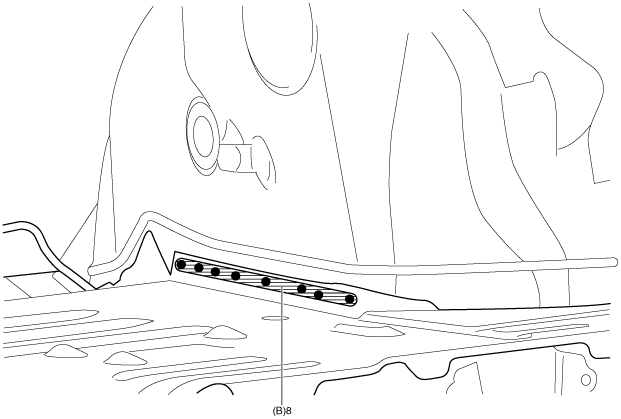

1.  Rough cut area locations indicated by (A) then dill the 97 locations indicated by (B) shown in the figure.

am2zzb00000188

am2zzb00000189

am2zzb00000190

Caution

•  During rough cutting, be careful not to damage the crossmember No.4 indicated by dotted lines in the figure.

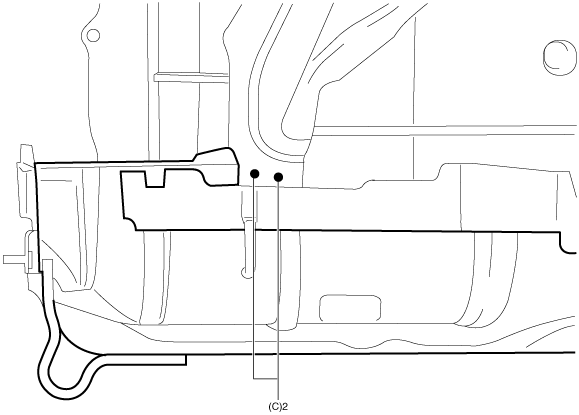

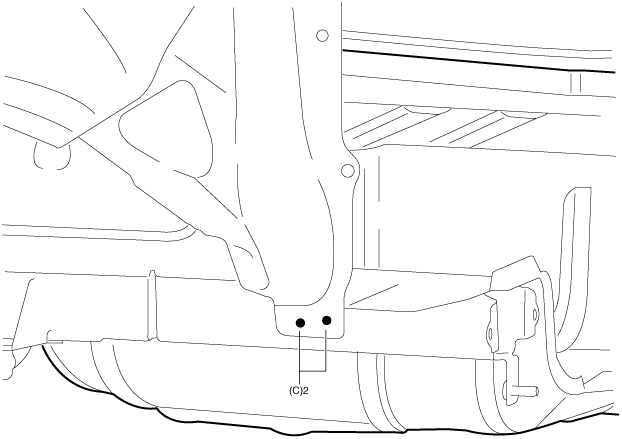

2.  Drill the 4 locations indicated by (C) shown in the figure.

am2zzb00000191

am2zzb00000192

Note

•  Drill the 4 locations indicated by (C) from the rear wheel housing.

3.  Remove the rear floor pan.
