FRONT BUMPER BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008743200

Symbol Mark

am2zzb00000048

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

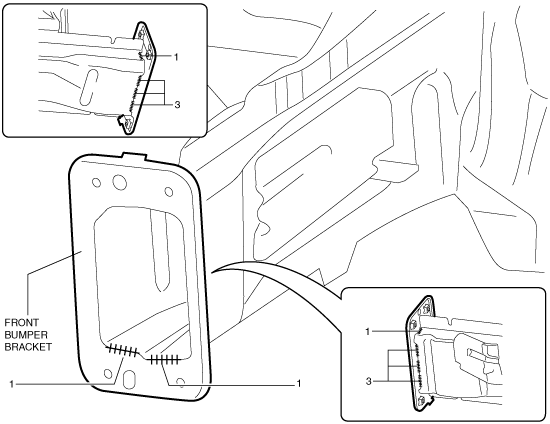

3.  Continuous MIG weld the 10 locations indicated shown in the figuer.

am2zzb00000049
