CENTER PILLAR REMOVAL [PANEL REPLACEMENT]

id098008743900

Symbol Mark

am2zzb00000157

Removal Procedure

Caution

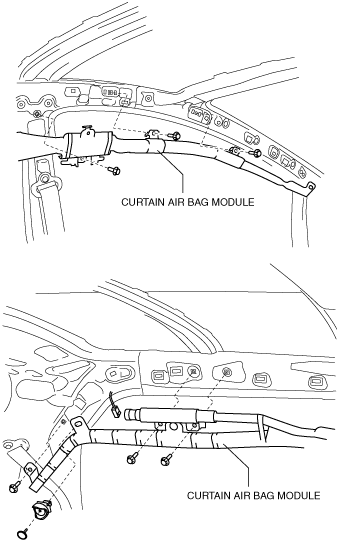

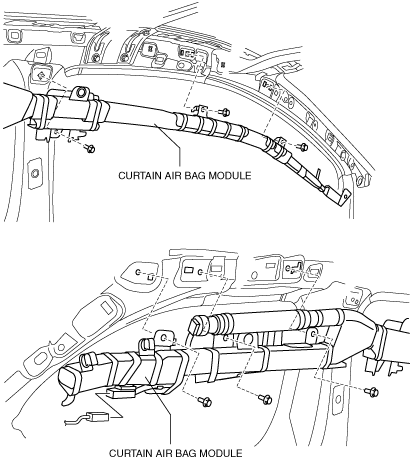

•  For vehicles with curtain air bags, remove the curtain air bag module to prevent damage before servicing.

5HB

am2zzb00000206

3HB

am2zzb00000207

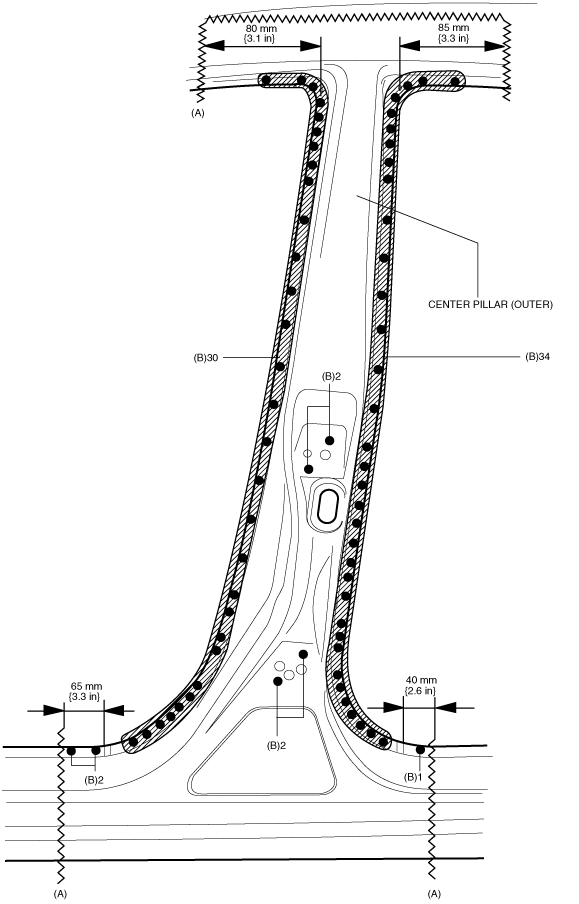

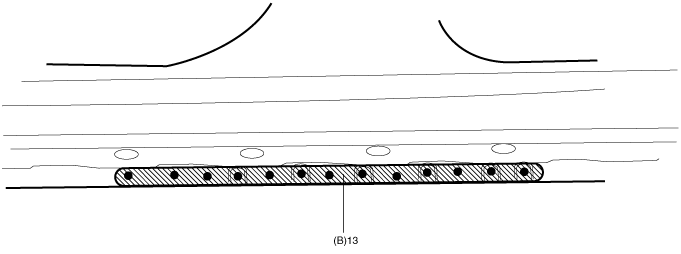

1.  Rough cut area locations indicated by (A) then drill the 84 locations indicated by (B) shown in the figure.

am2zzb00000158

am2zzb00000159

2.  Remove the center pillar (outer).

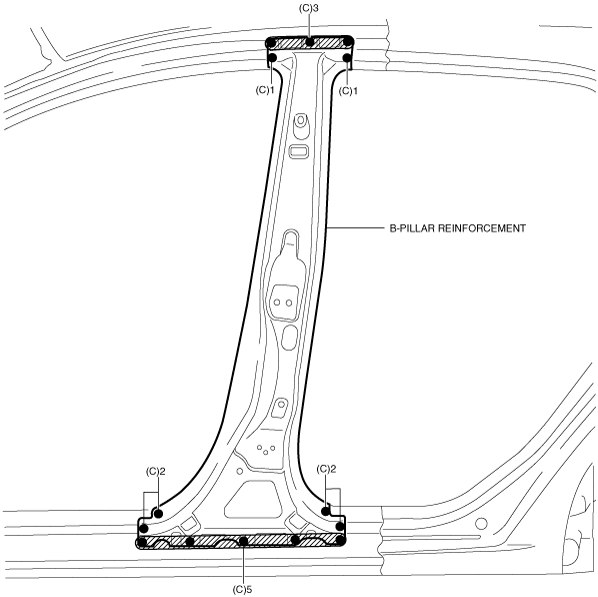

3.  Drill the 14 locations indicated by (C) shown in the figure.

am2zzb00000160

4.  Remove the B-pillar reinforcement.

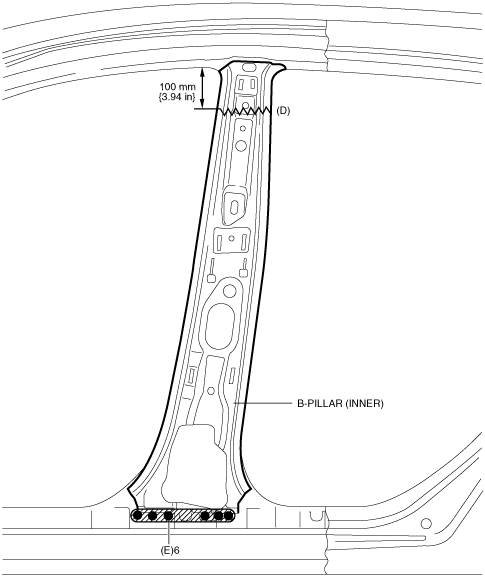

5.  Rough cut area locations indicated by (D) then drill the 6 locations indicated by (E) shown in the figure.

am2zzb00000161

6.  Remove the B-pillar (inner).
