CENTER PILLAR INSTALLATION [PANEL REPLACEMENT]

id098008744000

Symbol Mark

am2zzb00000162

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

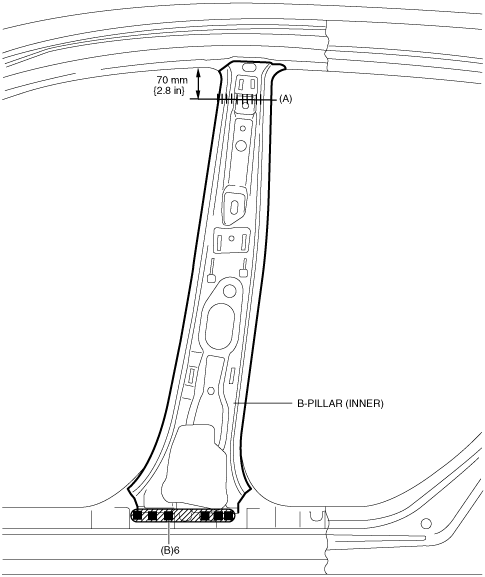

3.  Cut-and-join area locations indicated by (A) then plug weld the 6 locations indicated by (B) shown in the figure.

am2zzb00000163

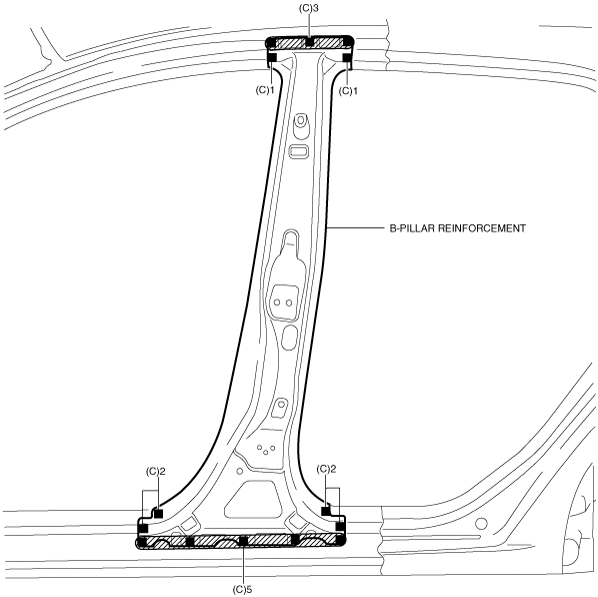

4.  Plug weld the 14 locations indicated by (C) shown in the figure.

am2zzb00000164

5.  After temporarily installing new parts, make sure the related parts fit properly.

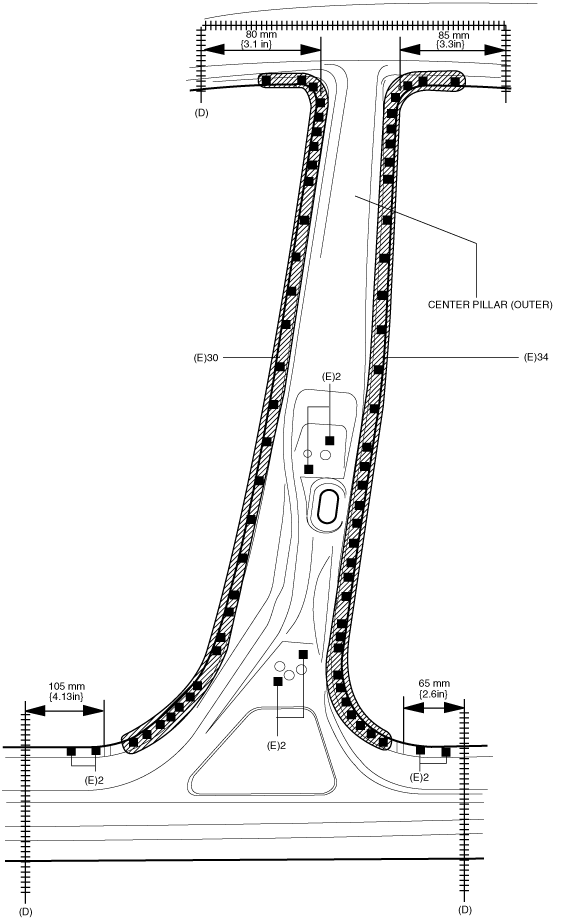

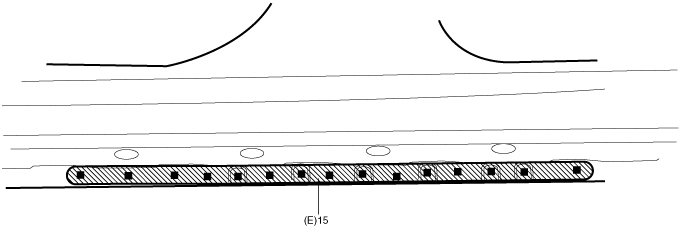

6.  Cut-and-join area locations indicated by (D) then plug weld 87 locations indicated (E) shown in the figure.

am2zzb00000165

am2zzb00000166
