WHEEL APRON COMPONENT INSTALLATION [PANEL REPLACEMENT]

id098008746100

Symbol Mark

am2zzb00000074

Installation Procedure (LH)

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

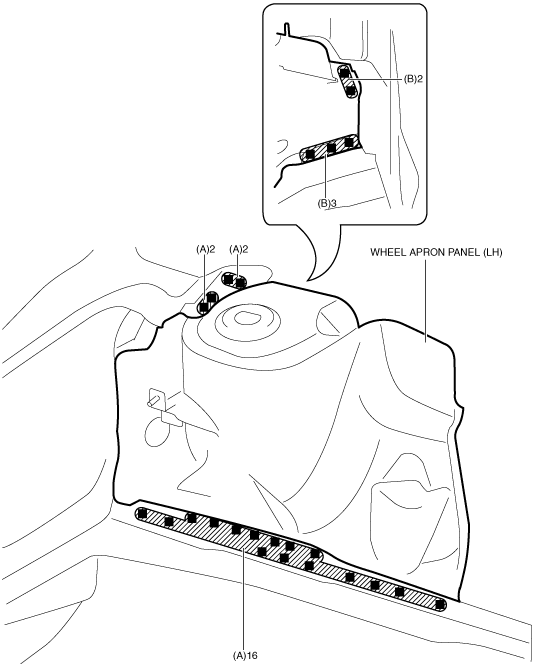

4.  Plug weld the 22 locations indicated by (A), drill the 5 locations indicated by (B) shown in the figure.

am2zzb00000075

Note

•  Plug weld the 2 locations indicated by (B) from the front wheel housing.

Installation Procedure (RH)

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

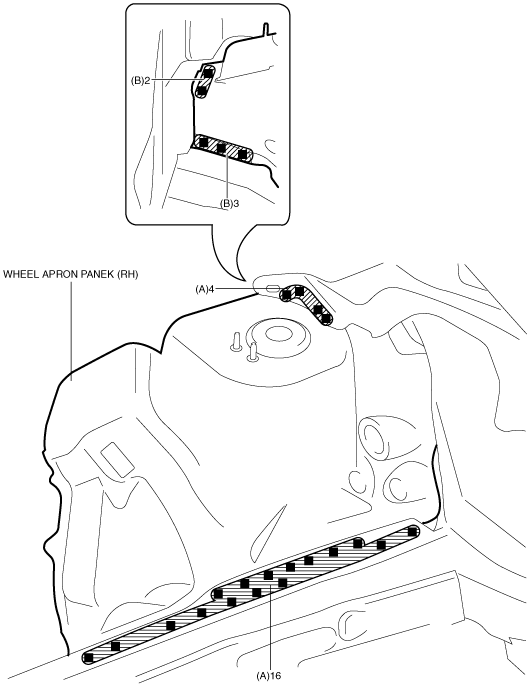

4.  Plug weld the 23 locations indicated by (A), drill the 5 locations indicated by (B) shown in the figure.

am2zzb00000076

Note

•  Plug weld the 2 locations indicated by (B) from the front wheel housing.

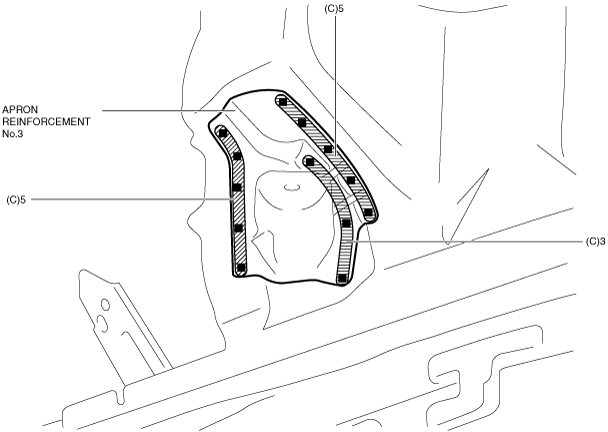

5.  Plug weld the 13 located indicated by (C) shown in the figure.

am2zzb00000077
