REAR PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008747200

Symbol Mark

am2zzb00000117

Removal Procedure

1.  Rough cut area locations indicated (A) then drill the 8 locations indicated (B) shown in the figure.

am2zzb00000022

2.  Remove the rear pillar (outer).

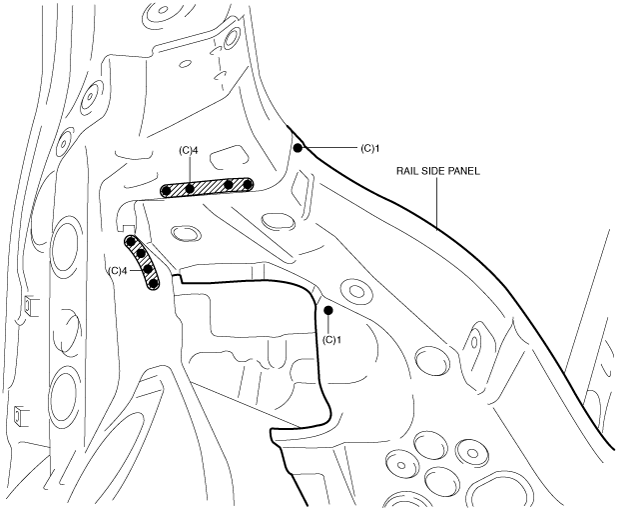

3.  Drill the 10 locations indicated by (C) shown in the figure.

am2zzb00000118

4.  Remove the rail side panel.
