WIPER BRACKET COMPONENT INSTALLATION [PANEL REPLACEMENT]

id098008750100

Symbol Mark

am2zzb00000056

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

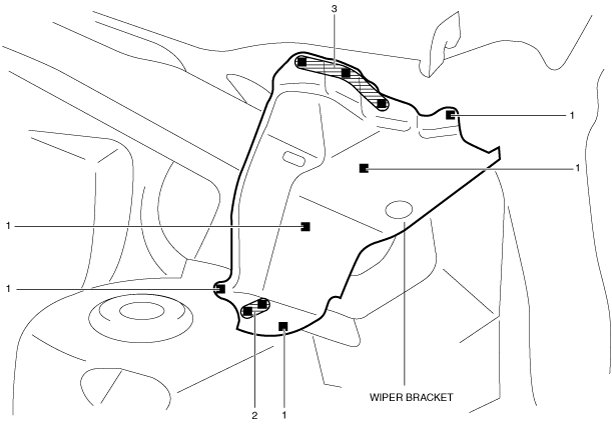

4.  Plug weld the 10 locations indicated shown in the figure.
