UNDERBODY FLAT-PLANE DIMENSIONS [DIMENSIONS]

id098010740400

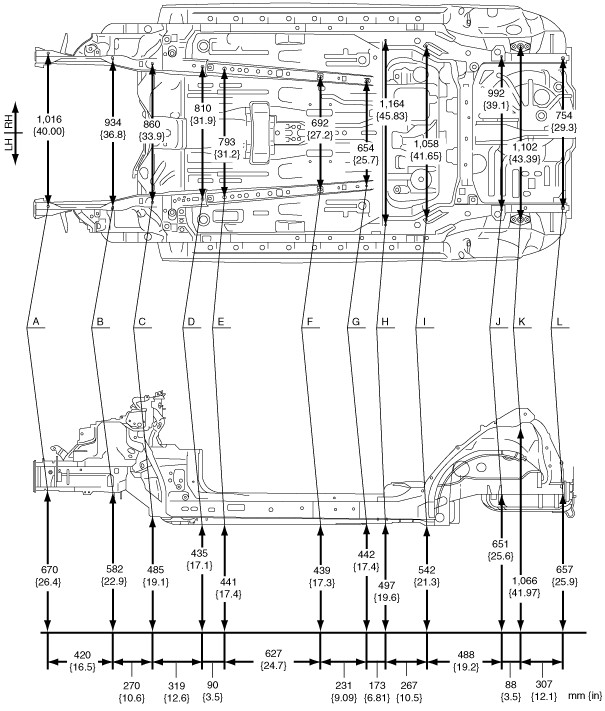

• The following figures are bottom and side views.

am2zzb00000277

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Front side frame (outer) datum hole

φ16 {0.63}

B

Suspension mounting bolt

M14 {0.55}

C

Suspension member installation hole

φ16 {0.63}

D

Front frame rear datum hole

φ16 {0.63}

E

Front B frame datum hole

φ7 {0.3}

F

Front B frame datum hole

16×22

{0.63×0.87}

G

Front B frame rear datum hole

16×20

{0.63×0.79}

H

Rear side frame datum hole

φ16 {0.63}

I

Rear side frame datum hole

φ10 {0.39}

J

Rear side frame datum hole

RH:φ12 {0.47}

LH:7×10

{0.63×0.39}

K

Suspension mounting block installation hole

φ20 {0.79}

L

Rear side frame datum hole

16×20

{0.63×0.79}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Front side frame (outer) datum hole	φ16 {0.63}
B	Suspension mounting bolt	M14 {0.55}
C	Suspension member installation hole	φ16 {0.63}
D	Front frame rear datum hole	φ16 {0.63}
E	Front B frame datum hole	φ7 {0.3}
F	Front B frame datum hole	16×22 {0.63×0.87}
G	Front B frame rear datum hole	16×20 {0.63×0.79}
H	Rear side frame datum hole	φ16 {0.63}
I	Rear side frame datum hole	φ10 {0.39}
J	Rear side frame datum hole	RH:φ12 {0.47} LH:7×10 {0.63×0.39}
K	Suspension mounting block installation hole	φ20 {0.79}
L	Rear side frame datum hole	16×20 {0.63×0.79}
