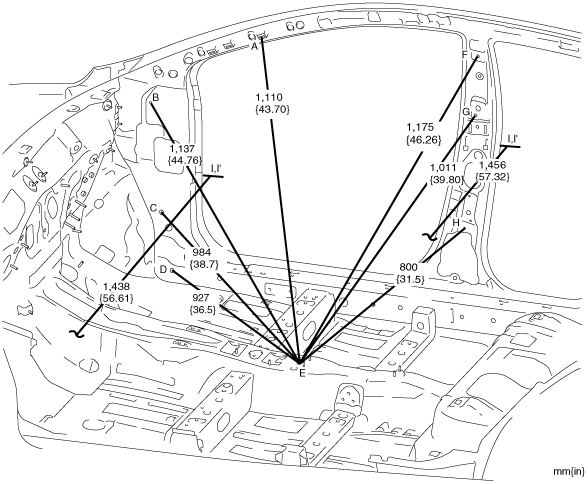

ROOM STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010743300
5HB
am2zzb00000233
|
am2zzb00000234
|
|

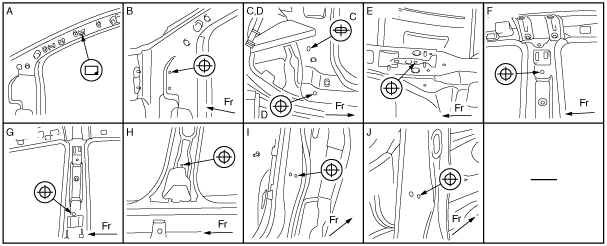

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front pillar (inner) square hole
|
8×19
{0.3×0.75}
|
|
B
|
Cowl gusset datum hole
|
φ7 {0.3}
|
|
C
|
Hinge pillar (inner) datum hole
|
16×20
{0.63×0.79}
|
|
D
|
Hinge pillar (inner) datum hole
|
φ16 {0.63}
|
|
E
|
Tunnel reinforcement datum hole
|
φ5 {0.2}
|
|
F
|
Seat belt anchor adjuster installation hole
|
φ12 {0.47}
|
|
G
|
B-pillar upper trim installation hole
|
φ9 {0.4}
|
|
H
|
Front seat belt retractor installation hole
|
φ7 {0.3}
|
|
I
|
Front door checker installation hole
|
φ4 {0.2}
|
|
J
|
Rear door checker installation hole
|
φ4 {0.2}
|

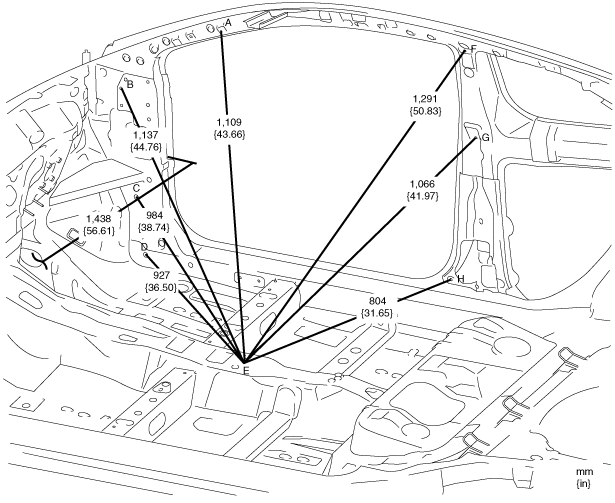

3HB
am2zzb00000266
|
am2zzb00000235
|
|

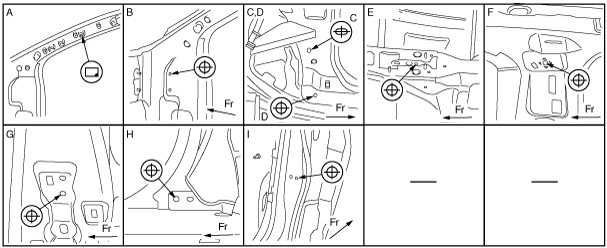

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front pillar (inner) square hole
|
8×19
{0.3×0.75}
|
|
B
|
Cowl gusset datum hole
|
φ7 {0.3}
|
|
C
|
Hinge pillar (inner) datum hole
|
16×20
{0.63×0.79}
|
|
D
|
Hinge pillar (inner) datum hole
|
φ16 {0.63}
|
|
E
|
Tunnel reinforcement datum hole
|
φ5 {0.2}
|
|
F
|
Curtain air bag module installation hole
|
φ7 {0.3}
|
|
G
|
B-pillar (inner) datum hole
|
φ9 {0.4}
|
|
H
|
Trunk side trim installation hole
|
φ8.6 {0.34}
|
|
I
|
Front door checker installation hole
|
φ4 {0.2}
|
