CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
id098010743600
5HB
am2zzb00000029
|
am2zzb00000030
|
am2zzb00000230
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front side frame (outer) datum hole
|
φ7 {0.3}
|
|
A'
|
Front side frame (outer) datum hole
|
φ7 {0.3}
|
|
B
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Side frame (outer) notch
|
-
|
|
E
|
Side frame (outer) projection location
|
-
|
|
F
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
G
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
H
|
Side frame (outer) notch
|
-
|
|
I
|
Side frame (outer) notch
|
-
|
|
J
|
Side frame (outer) notch
|
-
|
|
K
|
Rear combination light installation square hole
|
8×8
{0.3×0.3}
|
3HB

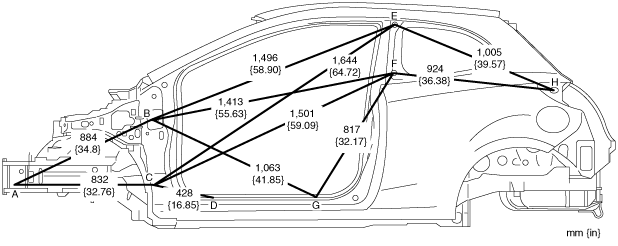

am2zzb00000265
|

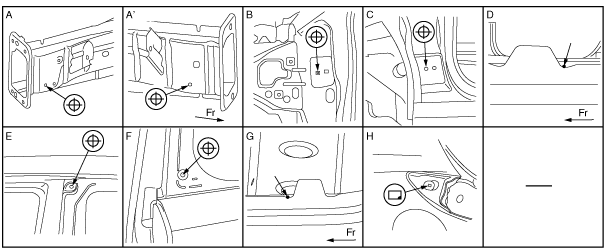

am2zzb00000232
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front side frame (outer) datum hole
|
φ7 {0.3}
|
|
A'
|
Front side frame (outer) datum hole
|
φ7 {0.3}
|
|
B
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Side frame (outer) notch
|
-
|
|
E
|
Quarter window glass installation hole
|
φ8.2
|
|
F
|
Quarter window glass installation hole
|
φ12
|
|
G
|
Side frame (outer) notch
|
-
|
|
H
|
Rear combination light installation square hole
|
8×8
{0.3×0.3}
|
