BODY COMPONENTS CONSTRUCTION [BODY STRUCTURE]

id098013739700

5HB

European (L.H.D.) specs.

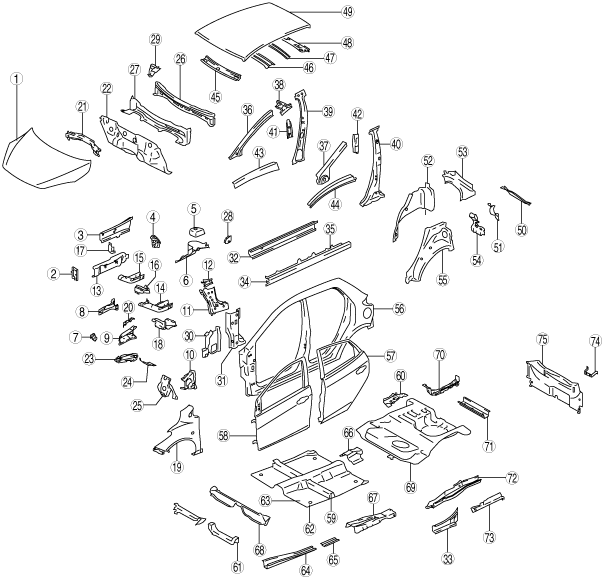

am2zzb00000001

No.	Part Name			Ultra high-tension Steel	High-tension Steel	Rust Proof Steel	Thickness （mm） {in}
1	Bonnet			-	×	×	0.60 {0.024}
2	Front bumper bracket			-	×	-	2.90 {0.114}
3	Front side frame (outer)			×	-	×	1.40 {0.055}
4	Apron reinforcement No.3			-	-	×	1.40 {0.055}
5	Front suspension housing (upper)			-	×	×	2.30 {0.091}
6	Front suspension housing (lower)			-	-	×	1.00 {0.039}
7	Apron reninforcement (upper)			-	-	×	0.90 {0.039}
8	Apron reinforcement (lower)			-	-	-	1.00 {0.039}
9	Cowl side reinforcement (Front)			-	-	×	0.75 {0.030}
10	Cowl side reinforcement (Rear)			-	-	-	1.00 {0.039}
11	Cowl side panel			×	-	×	1.60 {0.063}
12	Hinge gusset			×	-	-	2.30 {0.091}
13	Front side frame inner	Front		×	-	×	1.40 {0.055}
		Rear		×	-	×	1.80 {0.071}
14	Front frame Rear			×	-	×	2.00 {0.079}
15	Front frame Rear reinforcement			×	-	×	2.30 {0.091}
16	Front frame gusset			-	×	×	2.00 {0.079}
17	Front frame (inner) reinforcement			×	-	×	2.00 {0.079}
18	Torque box			-	×	×	1.60 {0.063}
19	Front fender panel			-	-	-	0.65 {0.026}
20	Front fender bracket			-	-	-	1.40 {0.055}
21	Dash lower member			-	×	×	1.80 {0.071}
22	Dash lower panel			-	-	×	0.75 {0.030}
23	Dash side reinforcement (upper)			×	-	-	2.00 {0.079}
24	Dash side reinforcement (lower)			×	-	-	1.60 {0.063}
25	Dash lower reinforcement			×	-	-	2.00 {0.079}
26	Cowl panel			-	-	×	0.70 {0.028}
27	Dash upper panel			-	-	×	0.80 {0.031}
28	Cowl upper plate			-	-	×	1.00 {0.039}
29	Wiper bracket			-	-	×	1.60 {0.063}
30	Hinge pillar (inner)			×	-	-	1.20 {0.047}
31	Hinge pillar reinforcement			×	-	-	1.20 {0.047}
32	Side sill (inner)	Front		×	-	×	1.60 {0.063}
		Rear		×	-	-	1.20 {0.047}
33	Side sill (inner, Rear)			×	-	×	1.20 {0.047}
34	Side sill reinforcement			×	-	×	1.40 {0.055}
35	Side sill reinforcement (Rear)			×	-	×	1.00 {0.039}
36	Front pillar (inner)			×	-	-	1.00 {0.039}
37	Front pillar reinforcement			×	-	-	1.00 {0.039}
38	Front pillar reinforcement (upper)			×	-	-	1.20 {0.047}
39	Center pillar (inner)			-	×	-	1.00 {0.039}
40	Center pillar reinforcement	Upper		×	-	-	1.80 {0.071}
		Lower		×	-	-	1.20 {0.047}
41	B-pillar reinforcement (inner)			-	×	-	1.20 {0.047}
42	Hinge reinforcement			×	-	-	1.40 {0.055}
43	Roof rail (inner)			×	-	-	1.00 {0.039}
44	Roof rail reinforcement			×	-	-	1.20 {0.047}
45	Front header			-	-	-	0.55 {0.022}
46	Roof reinforcement			×	-	-	1.00 {0.039}
47	Roof reinforcement			-	-	-	0.55 {0.022}
48	Rear header			-	-	-	0.80 {0.031}
49	Roof panel			-	-	-	0.65 {0.026}
50	Rear pillar (outer)			-	-	×	0.65 {0.026}
51	Corner plate			-	-	×	0.75 {0.030}
52	Wheel house (inner)			-	-	×	0.70 {0.028}
53	Rear pillar (inner, upper)			-	-	-	0.65 {0.026}
54	Rear side panel			-	-	-	0.80 {0.031}
55	Rear pillar (inner, lower)			-	-	×	0.70 {0.028}
56	Side frame outer			-	-	×	0.65 {0.026}
57	Rear door panel			-	-	×	0.65 {0.026}
58	Front door panel			-	-	×	0.70 {0.028}
59	Crossmember No.2			×	-	-	1.00 {0.039}
60	Seat bracket			-	×	×	1.80 {0.071}
61	Crossmember No.2.5			×	-	-	1.00 {0.039}
62	Front floor pan			-	-	×	0.65 {0.026}
63	Front floor reinforcement			×	-	-	1.00 {0.039}
64	Front B frame			×	-	-	1.80 {0.071}
65	Frame reinforcement			-	×	×	0.80 {0.031}
66	Tunnel reinforcement			-	×	-	0.80 {0.031}
67	Tunnel reinforcement			-	×	-	1.20 {0.047}
68	Center floor pan			-	×	×	1.20 {0.047}
69	Rear floor pan			-	-	×	0.60 {0.024}
70	Trunk floor reinforcement			-	×	×	1.40 {0.055}
71	Crossmember No.4			-	×	×	1.20 {0.047}
72	Rear side frame			×	-	×	1.80 {0.071}
73	Rear frame reinforcement			×	-	×	1.60 {0.063}
74	Rear bumper bracket			-	-	-	1.20 {0.047}
75	Rear end panel			-	-	×	1.00 {0.039}

U.K. specs.

am2zzb00000001

No.	Part Name			Ultra high-tension Steel	High-tension Steel	Rust Proof Steel	Thickness （mm） {in}
1	Bonnet			-	×	×	0.60 {0.024}
2	Front bumper bracket			-	×	-	2.90 {0.114}
3	Front side frame (outer)			×	-	×	1.40 {0.055}
4	Apron reinforcement No.3			-	-	×	1.40 {0.055}
5	Front suspension housing (upper)			-	×	×	2.30 {0.091}
6	Front suspension housing (lower)			-	-	×	1.00 {0.039}
7	Apron reninforcement (upper)			-	-	×	0.90 {0.039}
8	Apron reinforcement (lower)			-	-	-	1.00 {0.039}
9	Cowl side reinforcement (Front)			-	-	×	0.75 {0.030}
10	Cowl side reinforcement (Rear)			-	-	-	1.00 {0.039}
11	Cowl side panel			×	-	×	1.60 {0.063}
12	Hinge gusset			×	-	-	2.30 {0.091}
13	Front side frame inner	Front		×	-	×	1.40 {0.055}
		Rear		×	-	×	1.80 {0.071}
14	Front frame Rear			×	-	×	2.00 {0.079}
15	Front frame Rear reinforcement			×	-	×	2.30 {0.091}
16	Front frame gusset			-	×	×	2.00 {0.079}
17	Front frame (inner) reinforcement			×	-	×	2.00 {0.079}
18	Torque box			-	×	×	1.60 {0.063}
19	Front fender panel			-	-	-	0.65 {0.026}
20	Front fender bracket			-	-	-	1.40 {0.055}
21	Dash lower member			-	×	×	1.80 {0.071}
22	Dash lower panel			-	-	×	0.75 {0.030}
23	Dash side reinforcement (upper)			×	-	-	2.00 {0.079}
24	Dash side reinforcement (lower)			×	-	-	1.60 {0.063}
25	Dash lower reinforcement			×	-	-	2.00 {0.079}
26	Cowl panel			-	-	×	0.70 {0.028}
27	Dash upper panel			-	-	×	0.80 {0.031}
28	Cowl upper plate			-	-	×	1.00 {0.039}
29	Wiper bracket			-	-	×	1.60 {0.063}
30	Hinge pillar (inner)			×	-	-	1.20 {0.047}
31	Hinge pillar reinforcement			×	-	-	1.20 {0.047}
32	Side sill (inner)	Front		×	-	×	1.60 {0.063}
		Rear		×	-	×	1.20 {0.047}
33	Side sill (inner, Rear)			×	-	×	1.20 {0.047}
34	Side sill reinforcement			×	-	×	1.40 {0.055}
35	Side sill reinforcement (Rear)			×	-	×	1.00 {0.039}
36	Front pillar (inner)			×	-	-	1.00 {0.039}
37	Front pillar reinforcement			×	-	-	1.00 {0.039}
38	Front pillar reinforcement (upper)			×	-	-	1.20 {0.047}
39	Center pillar (inner)			-	×	-	1.00 {0.039}
40	Center pillar reinforcement	Upper		×	-	-	1.80 {0.071}
		Lower		×	-	-	1.20 {0.047}
41	B-pillar reinforcement (inner)			-	×	-	1.20 {0.047}
42	Hinge reinforcement			×	-	-	1.40 {0.055}
43	Roof rail (inner)			×	-	-	1.00 {0.039}
44	Roof rail reinforcement			×	-	-	1.20 {0.047}
45	Front header			-	-	-	0.55 {0.022}
46	Roof reinforcement			×	-	-	1.00 {0.039}
47	Roof reinforcement			-	-	-	0.55 {0.022}
48	Rear header			-	-	-	0.80 {0.031}
49	Roof panel			-	-	-	0.65 {0.026}
50	Rear pillar (outer)			-	-	×	0.65 {0.026}
51	Corner plate			-	-	×	0.75 {0.030}
52	Wheel house (inner)			-	-	×	0.70 {0.028}
53	Rear pillar (inner, upper)			-	-	-	0.65 {0.026}
54	Rear side panel			-	-	-	0.80 {0.031}
55	Rear pillar (inner, lower)			-	-	×	0.70 {0.028}
56	Side frame outer			-	-	×	0.65 {0.026}
57	Rear door panel			-	-	×	0.65 {0.026}
58	Front door panel			-	-	×	0.70 {0.028}
59	Crossmember No.2			×	-	-	1.00 {0.039}
60	Seat bracket			-	×	×	1.80 {0.071}
61	Crossmember No.2.5			×	-	-	1.00 {0.039}
62	Front floor pan			-	-	×	0.65 {0.026}
63	Front floor reinforcement			×	-	-	1.00 {0.039}
64	Front B frame			×	-	-	1.80 {0.071}
65	Frame reinforcement			-	×	×	0.80 {0.031}
66	Tunnel reinforcement			-	×	-	0.80 {0.031}
67	Tunnel reinforcement			-	×	-	1.20 {0.047}
68	Center floor pan			-	×	×	1.20 {0.047}
69	Rear floor pan			-	-	×	0.60 {0.024}
70	Trunk floor reinforcement			-	×	×	1.40 {0.055}
71	Crossmember No.4			-	×	×	1.20 {0.047}
72	Rear side frame			×	-	×	1.80 {0.071}
73	Rear frame reinforcement			×	-	×	1.60 {0.063}
74	Rear bumper bracket			-	-	-	1.20 {0.047}
75	Rear end panel			-	-	×	1.00 {0.039}

Australian specs.

am2zzb00000001

No.	Part Name			Ultra high-tension Steel	High-tension Steel	Rust Proof Steel	Thickness （mm） {in}
1	Bonnet			-	×	×	0.60 {0.024}
2	Front bumper bracket			-	×	-	2.90 {0.114}
3	Front side frame (outer)			×	-	×	1.40 {0.055}
4	Apron reinforcement No.3			-	-	×	1.40 {0.055}
5	Front suspension housing (upper)			-	×	×	2.30 {0.091}
6	Front suspension housing (lower)			-	-	×	1.00 {0.039}
7	Apron reninforcement (upper)			-	-	×	0.90 {0.039}
8	Apron reinforcement (lower)			-	-	-	1.00 {0.039}
9	Cowl side reinforcement (Front)			-	-	×	0.75 {0.030}
10	Cowl side reinforcement (Rear)			-	-	-	1.00 {0.039}
11	Cowl side panel			×	-	×	1.60 {0.063}
12	Hinge gusset			×	-	-	2.30 {0.091}
13	Front side frame inner	Front		×	-	×	1.40 {0.055}
		Rear		×	-	×	1.80 {0.071}
14	Front frame Rear			×	-	×	2.00 {0.079}
15	Front frame Rear reinforcement			×	-	×	2.30 {0.091}
16	Front frame gusset			-	×	×	2.00 {0.079}
17	Front frame (inner) reinforcement			×	-	×	2.00 {0.079}
18	Torque box			-	×	×	1.60 {0.063}
19	Front fender panel			-	-	-	0.65 {0.026}
20	Front fender bracket			-	-	-	1.40 {0.055}
21	Dash lower member			-	-	×	1.80 {0.071}
22	Dash lower panel			-	-	×	0.75 {0.030}
23	Dash side reinforcement (upper)			×	-	-	2.00 {0.079}
24	Dash side reinforcement (lower)			×	-	-	1.60 {0.063}
25	Dash lower reinforcement			×	-	-	2.00 {0.079}
26	Cowl panel			-	-	×	0.70 {0.028}
27	Dash upper panel			-	-	×	0.80 {0.031}
28	Cowl upper plate			-	-	×	1.00 {0.039}
29	Wiper bracket			-	-	×	1.60 {0.063}
30	Hinge pillar (inner)			×	-	-	1.20 {0.047}
31	Hinge pillar reinforcement			×	-	-	1.20 {0.047}
32	Side sill (inner)	Front		×	-	×	1.60 {0.063}
		Rear		×	-	-	1.20 {0.047}
33	Side sill (inner, Rear)			×	-	×	1.20 {0.047}
34	Side sill reinforcement			×	-	×	1.40 {0.055}
35	Side sill reinforcement (Rear)			×	-	×	1.00 {0.039}
36	Front pillar (inner)			×	-	-	1.00 {0.039}
37	Front pillar reinforcement			×	-	-	1.00 {0.039}
38	Front pillar reinforcement (upper)			×	-	-	1.20 {0.047}
39	Center pillar (inner)			-	×	-	1.00 {0.039}
40	Center pillar reinforcement	Upper		×	-	-	1.80 {0.071}
		Lower		×	-	-	1.20 {0.047}
41	B-pillar reinforcement (inner)			-	×	-	1.20 {0.047}
42	Hinge reinforcement			×	-	-	1.40 {0.055}
43	Roof rail (inner)			×	-	-	1.00 {0.039}
44	Roof rail reinforcement			×	-	-	1.20 {0.047}
45	Front header			-	-	-	0.55 {0.022}
46	Roof reinforcement			×	-	-	1.00 {0.039}
47	Roof reinforcement			-	-	-	0.55 {0.022}
48	Rear header			-	-	-	0.80 {0.031}
49	Roof panel			-	-	-	0.65 {0.026}
50	Rear pillar (outer)			-	-	×	0.65 {0.026}
51	Corner plate			-	-	×	0.75 {0.030}
52	Wheel house (inner)			-	-	×	0.70 {0.028}
53	Rear pillar (inner, upper)			-	-	-	0.65 {0.026}
54	Rear side panel			-	-	-	0.80 {0.031}
55	Rear pillar (inner, lower)			-	-	×	0.70 {0.028}
56	Side frame outer			-	-	×	0.65 {0.026}
57	Rear door panel			-	-	×	0.65 {0.026}
58	Front door panel			-	-	×	0.70 {0.028}
59	Crossmember No.2			×	-	-	1.00 {0.039}
60	Seat bracket			-	×	×	1.80 {0.071}
61	Crossmember No.2.5			×	-	-	1.00 {0.039}
62	Front floor pan			-	-	×	0.65 {0.026}
63	Front floor reinforcement			×	-	-	1.00 {0.039}
64	Front B frame			×	-	-	1.80 {0.071}
65	Frame reinforcement			-	×	×	0.80 {0.031}
66	Tunnel reinforcement			-	×	-	0.80 {0.031}
67	Tunnel reinforcement			-	×	-	1.20 {0.047}
68	Center floor pan			-	×	×	1.20 {0.047}
69	Rear floor pan			-	-	×	0.60 {0.024}
70	Trunk floor reinforcement			-	×	×	1.40 {0.055}
71	Crossmember No.4			-	×	×	1.20 {0.047}
72	Rear side frame			×	-	×	1.80 {0.071}
73	Rear frame reinforcement			×	-	×	1.60 {0.063}
74	Rear bumper bracket			-	-	-	1.20 {0.047}
75	Rear end panel			-	-	×	1.00 {0.039}

General (L.H.D.) specs.

am2zzb00000001

No.	Part Name			Ultra high-tension Steel	High-tension Steel	Rust Proof Steel	Thickness （mm） {in}
1	Bonnet			-	×	×	0.60 {0.024}
2	Front bumper bracket			-	×	-	2.90 {0.114}
3	Front side frame (outer)			×	-	×	1.40 {0.055}
4	Apron reinforcement No.3			-	-	×	1.40 {0.055}
5	Front suspension housing (upper)			-	×	×	2.30 {0.091}
6	Front suspension housing (lower)			-	-	×	1.00 {0.039}
7	Apron reninforcement (upper)			-	-	×	0.90 {0.039}
8	Apron reinforcement (lower)			-	-	-	1.00 {0.039}
9	Cowl side reinforcement (Front)			-	-	×	0.75 {0.030}
10	Cowl side reinforcement (Rear)			-	-	-	1.00 {0.039}
11	Cowl side panel			×	-	×	1.60 {0.063}
12	Hinge gusset			×	-	-	2.30 {0.091}
13	Front side frame inner	Front		×	-	×	1.40 {0.055}
		Rear		×	-	×	1.80 {0.071}
14	Front frame Rear			×	-	×	2.00 {0.079}
15	Front frame Rear reinforcement			×	-	×	2.30 {0.091}
16	Front frame gusset			-	×	×	2.00 {0.079}
17	Front frame (inner) reinforcement			×	-	×	2.00 {0.079}
18	Torque box			-	×	×	1.60 {0.063}
19	Front fender panel			-	-	-	0.65 {0.026}
20	Front fender bracket			-	-	-	1.40 {0.055}
21	Dash lower member			-	-	×	1.80 {0.071}
22	Dash lower panel			-	-	×	0.75 {0.030}
23	Dash side reinforcement (upper)			×	-	-	2.00 {0.079}
24	Dash side reinforcement (lower)			×	-	-	1.60 {0.063}
25	Dash lower reinforcement			×	-	-	2.00 {0.079}
26	Cowl panel			-	-	×	0.70 {0.028}
27	Dash upper panel			-	-	×	0.80 {0.031}
28	Cowl upper plate			-	-	×	1.00 {0.039}
29	Wiper bracket			-	-	×	1.60 {0.063}
30	Hinge pillar (inner)			×	-	-	1.20 {0.047}
31	Hinge pillar reinforcement			×	-	-	1.20 {0.047}
32	Side sill (inner)	Front		×	-	×	1.60 {0.063}
		Rear		×	-	-	1.20 {0.047}
33	Side sill (inner, Rear)			×	-	×	1.20 {0.047}
34	Side sill reinforcement			×	-	×	1.40 {0.055}
35	Side sill reinforcement (Rear)			×	-	×	1.00 {0.039}
36	Front pillar (inner)			×	-	-	1.00 {0.039}
37	Front pillar reinforcement			×	-	-	1.00 {0.039}
38	Front pillar reinforcement (upper)			×	-	-	1.20 {0.047}
39	Center pillar (inner)			-	×	-	1.00 {0.039}
40	Center pillar reinforcement	Upper		×	-	-	1.80 {0.071}
		Lower		×	-	-	1.20 {0.047}
41	B-pillar reinforcement (inner)			-	×	-	1.20 {0.047}
42	Hinge reinforcement			×	-	-	1.40 {0.055}
43	Roof rail (inner)			×	-	-	1.00 {0.039}
44	Roof rail reinforcement			×	-	-	1.20 {0.047}
45	Front header			-	-	-	0.55 {0.022}
46	Roof reinforcement			×	-	-	1.00 {0.039}
47	Roof reinforcement			-	-	-	0.55 {0.022}
48	Rear header			-	-	-	0.80 {0.031}
49	Roof panel			-	-	-	0.65 {0.026}
50	Rear pillar (outer)			-	-	×	0.65 {0.026}
51	Corner plate			-	-	×	0.75 {0.030}
52	Wheel house (inner)			-	-	×	0.70 {0.028}
53	Rear pillar (inner, upper)			-	-	-	0.65 {0.026}
54	Rear side panel			-	-	-	0.80 {0.031}
55	Rear pillar (inner, lower)			-	-	×	0.70 {0.028}
56	Side frame outer			-	-	×	0.65 {0.026}
57	Rear door panel			-	-	×	0.65 {0.026}
58	Front door panel			-	-	×	0.70 {0.028}
59	Crossmember No.2			×	-	-	1.00 {0.039}
60	Seat bracket			-	×	×	1.80 {0.071}
61	Crossmember No.2.5			×	-	-	1.00 {0.039}
62	Front floor pan			-	-	×	0.65 {0.026}
63	Front floor reinforcement			×	-	-	1.00 {0.039}
64	Front B frame			×	-	-	1.80 {0.071}
65	Frame reinforcement			-	×	×	0.80 {0.031}
66	Tunnel reinforcement			-	×	-	0.80 {0.031}
67	Tunnel reinforcement			-	×	-	1.20 {0.047}
68	Center floor pan			-	×	×	1.20 {0.047}
69	Rear floor pan			-	-	×	0.60 {0.024}
70	Trunk floor reinforcement			-	×	×	1.40 {0.055}
71	Crossmember No.4			-	×	×	1.20 {0.047}
72	Rear side frame			×	-	×	1.80 {0.071}
73	Rear frame reinforcement			×	-	×	1.60 {0.063}
74	Rear bumper bracket			-	-	-	1.20 {0.047}
75	Rear end panel			-	-	×	1.00 {0.039}

3HB

European (L.H.D.) specs.

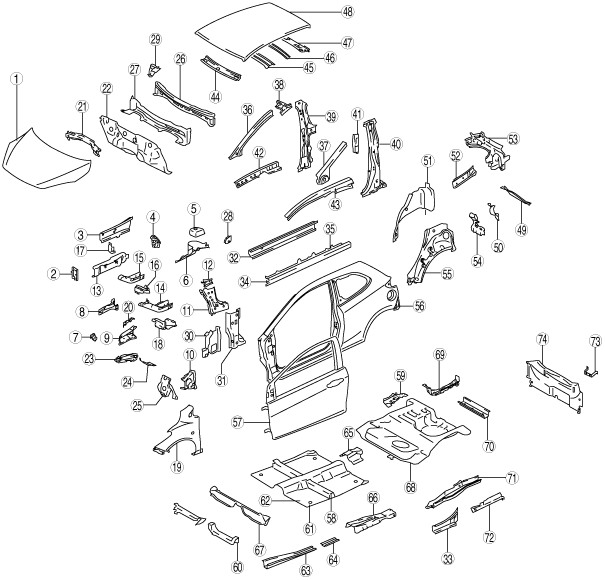

am2zzb00000252

No.	Part Name			Ultra high-tension Steel	High-tension Steel	Rust Proof Steel	Thickness （mm） {in}
1	Bonnet			-	×	×	0.60 {0.024}
2	Front bumper bracket			-	×	-	2.90 {0.114}
3	Front side frame (outer)			×	-	×	1.40 {0.055}
4	Apron reinforcement No.3			-	-	×	1.40 {0.055}
5	Front suspension housing (upper)			-	×	×	2.30 {0.091}
6	Front suspension housing (lower)			-	-	×	1.00 {0.039}
7	Apron reninforcement (upper)			-	-	×	0.90 {0.039}
8	Apron reinforcement (lower)			-	-	-	1.00 {0.039}
9	Cowl side reinforcement (Front)			-	-	×	0.75 {0.030}
10	Cowl side reinforcement (Rear)			-	-	-	1.00 {0.039}
11	Cowl side panel			×	-	×	1.60 {0.063}
12	Hinge gusset			×	-	-	2.30 {0.091}
13	Front side frame inner	Front		×	-	×	1.40 {0.055}
		Rear		×	-	×	1.80 {0.071}
14	Front frame Rear			×	-	×	2.00 {0.079}
15	Front frame Rear reinforcement			×	-	×	2.30 {0.091}
16	Front frame gusset			-	×	×	2.00 {0.079}
17	Front frame (inner) reinforcement			×	-	×	2.00 {0.079}
18	Torque box			-	×	×	1.60 {0.063}
19	Front fender panel			-	-	-	0.65 {0.026}
20	Front fender bracket			-	-	-	1.40 {0.055}
21	Dash lower member			-	×	×	1.80 {0.071}
22	Dash lower panel			-	-	×	0.75 {0.030}
23	Dash side reinforcement (upper)			×	-	-	2.00 {0.079}
24	Dash side reinforcement (lower)			×	-	-	1.60 {0.063}
25	Dash lower reinforcement			×	-	-	2.00 {0.079}
26	Cowl panel			-	-	×	0.70 {0.028}
27	Dash upper panel			-	-	×	0.80 {0.031}
28	Cowl upper plate			-	-	×	1.00 {0.039}
29	Wiper bracket			-	-	×	1.60 {0.063}
30	Hinge pillar (inner)			×	-	-	1.20 {0.047}
31	Hinge pillar reinforcement			×	-	-	1.20 {0.047}
32	Side sill (inner)	Front		×	-	×	1.60 {0.063}
		Rear		×	-	-	1.20 {0.047}
33	Side sill (inner, Rear)			×	-	×	1.20 {0.047}
34	Side sill reinforcement			×	-	×	1.40 {0.055}
35	Side sill reinforcement (Rear)			×	-	×	1.00 {0.039}
36	Front pillar (inner)			×	-	-	1.00 {0.039}
37	Front pillar reinforcement			×	-	-	1.00 {0.039}
38	Front pillar reinforcement (upper)			×	-	-	1.20 {0.047}
39	Center pillar (inner)	Upper		-	×	-	1.20 {0.047}
		lower		-	×	-	1.00 {0.039}
40	Center pillar reinforcement	Upper		×	-	-	1.80 {0.071}
		Lower		×	-	-	1.40 {0.055}
41	Hinge reinforcement			×	-	-	1.60 {0.063}
42	Roof rail (inner)			×	-	-	1.00 {0.039}
43	Roof rail reinforcement			×	-	-	1.20 {0.047}
44	Front header			-	-	-	0.55 {0.022}
45	Roof reinforcement			×	-	-	1.00 {0.039}
46	Roof reinforcement			-	-	-	0.55 {0.022}
47	Rear header			-	-	-	0.80 {0.031}
48	Roof panel			-	-	-	0.65 {0.026}
49	Rear pillar (outer)			-	-	×	0.65 {0.026}
50	Corner plate			-	-	×	0.75 {0.030}
51	Wheel house (inner)			-	-	×	0.70 {0.028}
52	Beltline reinforcement			-	-	-	1.20 {0.047}
53	Rear pillar (inner, upper)			-	-	-	0.65 {0.026}
54	Rear side panel			-	-	-	0.80 {0.031}
55	Rear pillar (inner, lower)			-	-	×	0.70 {0.028}
56	Side frame outer			-	-	×	0.65 {0.026}
57	Front door panel			-	-	×	0.70 {0.028}
58	Crossmember No.2			×	-	-	1.00 {0.039}
59	Seat bracket			-	×	×	1.80 {0.071}
60	Crossmember No.2.5			×	-	-	1.00 {0.039}
61	Front floor pan			-	-	×	0.65 {0.026}
62	Front floor reinforcement			×	-	-	1.00 {0.039}
63	Front B frame			×	-	-	1.80 {0.071}
64	Frame reinforcement			-	×	×	0.80 {0.031}
65	Tunnel reinforcement			-	×	-	0.80 {0.031}
66	Tunnel reinforcement			-	×	-	1.20 {0.047}
67	Center floor pan			-	×	×	1.20 {0.047}
68	Rear floor pan			-	-	×	0.60 {0.024}
69	Trunk floor reinforcement			-	×	×	1.40 {0.055}
70	Crossmember No.4			-	×	×	1.20 {0.047}
71	Rear side frame			×	-	×	1.80 {0.071}
72	Rear frame reinforcement			×	-	×	1.60 {0.063}
73	Rear bumper bracket			-	-	-	1.20 {0.047}
74	Rear end panel			-	-	×	1.00 {0.039}

U.K. specs.

am2zzb00000252

No.	Part Name			Ultra high-tension Steel	High-tension Steel	Rust Proof Steel	Thickness （mm） {in}
1	Bonnet			-	×	×	0.60 {0.024}
2	Front bumper bracket			-	×	-	2.90 {0.114}
3	Front side frame (outer)			×	-	×	1.40 {0.055}
4	Apron reinforcement No.3			-	-	×	1.40 {0.055}
5	Front suspension housing (upper)			-	×	×	2.30 {0.091}
6	Front suspension housing (lower)			-	-	×	1.00 {0.039}
7	Apron reninforcement (upper)			-	-	×	0.90 {0.039}
8	Apron reinforcement (lower)			-	-	-	1.00 {0.039}
9	Cowl side reinforcement (Front)			-	-	×	0.75 {0.030}
10	Cowl side reinforcement (Rear)			-	-	-	1.00 {0.039}
11	Cowl side panel			×	-	×	1.60 {0.063}
12	Hinge gusset			×	-	-	2.30 {0.091}
13	Front side frame inner	Front		×	-	×	1.40 {0.055}
		Rear		×	-	×	1.80 {0.071}
14	Front frame Rear			×	-	×	2.00 {0.079}
15	Front frame Rear reinforcement			×	-	×	2.30 {0.091}
16	Front frame gusset			-	×	×	2.00 {0.079}
17	Front frame (inner) reinforcement			×	-	×	2.00 {0.079}
18	Torque box			-	×	×	1.60 {0.063}
19	Front fender panel			-	-	-	0.65 {0.026}
20	Front fender bracket			-	-	-	1.40 {0.055}
21	Dash lower member			-	×	×	1.80 {0.071}
22	Dash lower panel			-	-	×	0.75 {0.030}
23	Dash side reinforcement (upper)			×	-	-	2.00 {0.079}
24	Dash side reinforcement (lower)			×	-	-	1.60 {0.063}
25	Dash lower reinforcement			×	-	-	2.00 {0.079}
26	Cowl panel			-	-	×	0.70 {0.028}
27	Dash upper panel			-	-	×	0.80 {0.031}
28	Cowl upper plate			-	-	×	1.00 {0.039}
29	Wiper bracket			-	-	×	1.60 {0.063}
30	Hinge pillar (inner)			×	-	-	1.20 {0.047}
31	Hinge pillar reinforcement			×	-	-	1.20 {0.047}
32	Side sill (inner)	Front		×	-	×	1.60 {0.063}
		Rear		×	-	×	1.20 {0.047}
33	Side sill (inner, Rear)			×	-	×	1.20 {0.047}
34	Side sill reinforcement			×	-	×	1.40 {0.055}
35	Side sill reinforcement (Rear)			×	-	×	1.00 {0.039}
36	Front pillar (inner)			×	-	-	1.00 {0.039}
37	Front pillar reinforcement			×	-	-	1.00 {0.039}
38	Front pillar reinforcement (upper)			×	-	-	1.20 {0.047}
39	Center pillar (inner)	Upper		-	×	-	1.20 {0.047}
		lower		-	×	-	1.00 {0.039}
40	Center pillar reinforcement	Upper		×	-	-	1.80 {0.071}
		Lower		×	-	-	1.40 {0.055}
41	Hinge reinforcement			×	-	-	1.60 {0.063}
42	Roof rail (inner)			×	-	-	1.00 {0.039}
43	Roof rail reinforcement			×	-	-	1.20 {0.047}
44	Front header			-	-	-	0.55 {0.022}
45	Roof reinforcement			×	-	-	1.00 {0.039}
46	Roof reinforcement			-	-	-	0.55 {0.022}
47	Rear header			-	-	-	0.80 {0.031}
48	Roof panel			-	-	-	0.65 {0.026}
49	Rear pillar (outer)			-	-	×	0.65 {0.026}
50	Corner plate			-	-	×	0.75 {0.030}
51	Wheel house (inner)			-	-	×	0.70 {0.028}
52	Beltline reinforcement			-	-	-	1.20 {0.047}
53	Rear pillar (inner, upper)			-	-	-	0.65 {0.026}
54	Rear side panel			-	-	-	0.80 {0.031}
55	Rear pillar (inner, lower)			-	-	×	0.70 {0.028}
56	Side frame outer			-	-	×	0.65 {0.026}
57	Front door panel			-	-	×	0.70 {0.028}
58	Crossmember No.2			×	-	-	1.00 {0.039}
59	Seat bracket			-	×	×	1.80 {0.071}
60	Crossmember No.2.5			×	-	-	1.00 {0.039}
61	Front floor pan			-	-	×	0.65 {0.026}
62	Front floor reinforcement			×	-	-	1.00 {0.039}
63	Front B frame			×	-	-	1.80 {0.071}
64	Frame reinforcement			-	×	×	0.80 {0.031}
65	Tunnel reinforcement			-	×	-	0.80 {0.031}
66	Tunnel reinforcement			-	×	-	1.20 {0.047}
67	Center floor pan			-	×	×	1.20 {0.047}
68	Rear floor pan			-	-	×	0.60 {0.024}
69	Trunk floor reinforcement			-	×	×	1.40 {0.055}
70	Crossmember No.4			-	×	×	1.20 {0.047}
71	Rear side frame			×	-	×	1.80 {0.071}
72	Rear frame reinforcement			×	-	×	1.60 {0.063}
73	Rear bumper bracket			-	-	-	1.20 {0.047}
74	Rear end panel			-	-	×	1.00 {0.039}

Australian specs.

am2zzb00000252

No.	Part Name			Ultra high-tension Steel	High-tension Steel	Rust Proof Steel	Thickness （mm） {in}
1	Bonnet			-	×	×	0.60 {0.024}
2	Front bumper bracket			-	×	-	2.90 {0.114}
3	Front side frame (outer)			×	-	×	1.40 {0.055}
4	Apron reinforcement No.3			-	-	×	1.40 {0.055}
5	Front suspension housing (upper)			-	×	×	2.30 {0.091}
6	Front suspension housing (lower)			-	-	×	1.00 {0.039}
7	Apron reninforcement (upper)			-	-	×	0.90 {0.039}
8	Apron reinforcement (lower)			-	-	-	1.00 {0.039}
9	Cowl side reinforcement (Front)			-	-	×	0.75 {0.030}
10	Cowl side reinforcement (Rear)			-	-	-	1.00 {0.039}
11	Cowl side panel			×	-	×	1.60 {0.063}
12	Hinge gusset			×	-	-	2.30 {0.091}
13	Front side frame inner	Front		×	-	×	1.40 {0.055}
		Rear		×	-	×	1.80 {0.071}
14	Front frame Rear			×	-	×	2.00 {0.079}
15	Front frame Rear reinforcement			×	-	×	2.30 {0.091}
16	Front frame gusset			-	×	×	2.00 {0.079}
17	Front frame (inner) reinforcement			×	-	×	2.00 {0.079}
18	Torque box			-	×	×	1.60 {0.063}
19	Front fender panel			-	-	-	0.65 {0.026}
20	Front fender bracket			-	-	-	1.40 {0.055}
21	Dash lower member			-	-	×	1.80 {0.071}
22	Dash lower panel			-	-	×	0.75 {0.030}
23	Dash side reinforcement (upper)			×	-	-	2.00 {0.079}
24	Dash side reinforcement (lower)			×	-	-	1.60 {0.063}
25	Dash lower reinforcement			×	-	-	2.00 {0.079}
26	Cowl panel			-	-	×	0.70 {0.028}
27	Dash upper panel			-	-	×	0.80 {0.031}
28	Cowl upper plate			-	-	×	1.00 {0.039}
29	Wiper bracket			-	-	×	1.60 {0.063}
30	Hinge pillar (inner)			×	-	-	1.20 {0.047}
31	Hinge pillar reinforcement			×	-	-	1.20 {0.047}
32	Side sill (inner)	Front		×	-	×	1.60 {0.063}
		Rear		×	-	-	1.20 {0.047}
33	Side sill (inner, Rear)			×	-	×	1.20 {0.047}
34	Side sill reinforcement			×	-	×	1.40 {0.055}
35	Side sill reinforcement (Rear)			×	-	×	1.00 {0.039}
36	Front pillar (inner)			×	-	-	1.00 {0.039}
37	Front pillar reinforcement			×	-	-	1.00 {0.039}
38	Front pillar reinforcement (upper)			×	-	-	1.20 {0.047}
39	Center pillar (inner)	Upper		-	×	-	1.20 {0.047}
		lower		-	×	-	1.00 {0.039}
40	Center pillar reinforcement	Upper		×	-	-	1.80 {0.071}
		Lower		×	-	-	1.40 {0.055}
41	Hinge reinforcement			×	-	-	1.60 {0.063}
42	Roof rail (inner)			×	-	-	1.00 {0.039}
43	Roof rail reinforcement			×	-	-	1.20 {0.047}
44	Front header			-	-	-	0.55 {0.022}
45	Roof reinforcement			×	-	-	1.00 {0.039}
46	Roof reinforcement			-	-	-	0.55 {0.022}
47	Rear header			-	-	-	0.80 {0.031}
48	Roof panel			-	-	-	0.65 {0.026}
49	Rear pillar (outer)			-	-	×	0.65 {0.026}
50	Corner plate			-	-	×	0.75 {0.030}
51	Wheel house (inner)			-	-	×	0.70 {0.028}
52	Beltline reinforcement			-	-	-	1.20 {0.047}
53	Rear pillar (inner, upper)			-	-	-	0.65 {0.026}
54	Rear side panel			-	-	-	0.80 {0.031}
55	Rear pillar (inner, lower)			-	-	×	0.70 {0.028}
56	Side frame outer			-	-	×	0.65 {0.026}
57	Front door panel			-	-	×	0.70 {0.028}
58	Crossmember No.2			×	-	-	1.00 {0.039}
59	Seat bracket			-	×	×	1.80 {0.071}
60	Crossmember No.2.5			×	-	-	1.00 {0.039}
61	Front floor pan			-	-	×	0.65 {0.026}
62	Front floor reinforcement			×	-	-	1.00 {0.039}
63	Front B frame			×	-	-	1.80 {0.071}
64	Frame reinforcement			-	×	×	0.80 {0.031}
65	Tunnel reinforcement			-	×	-	0.80 {0.031}
66	Tunnel reinforcement			-	×	-	1.20 {0.047}
67	Center floor pan			-	×	×	1.20 {0.047}
68	Rear floor pan			-	-	×	0.60 {0.024}
69	Trunk floor reinforcement			-	×	×	1.40 {0.055}
70	Crossmember No.4			-	×	×	1.20 {0.047}
71	Rear side frame			×	-	×	1.80 {0.071}
72	Rear frame reinforcement			×	-	×	1.60 {0.063}
73	Rear bumper bracket			-	-	-	1.20 {0.047}
754	Rear end panel			-	-	×	1.00 {0.039}
