ULTRA HIGH-TENSION STEEL [BODY STRUCTURE]

• Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.

• Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.

• Enhanced shock absorption has improved the safety.

• Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.

• When drilling welded parts, use a well-ground drill bit.

• After welding, inspect the weld strength. If adhesion is poor, perform CO2 arc welding (plug welding).

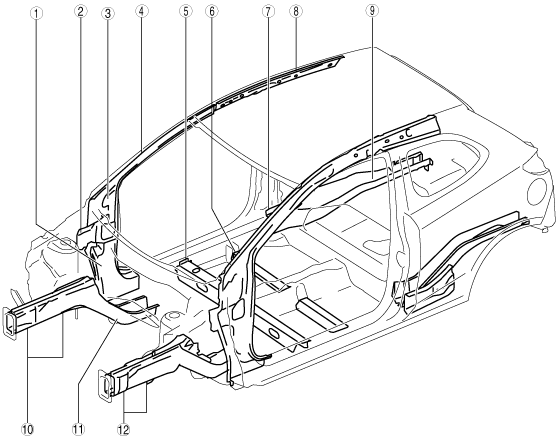

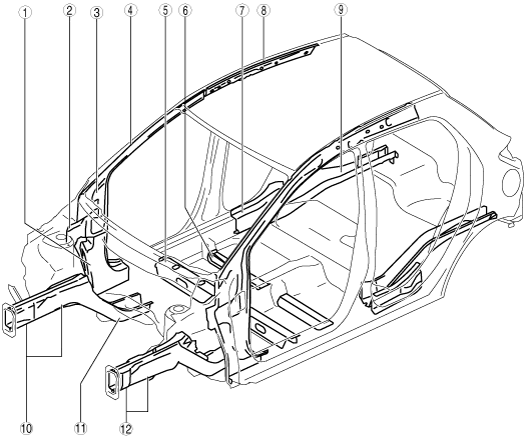

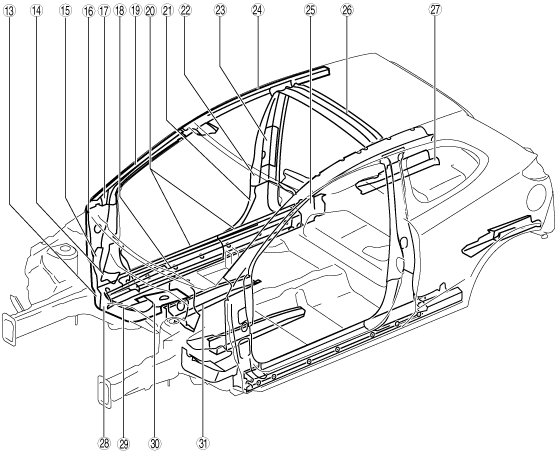

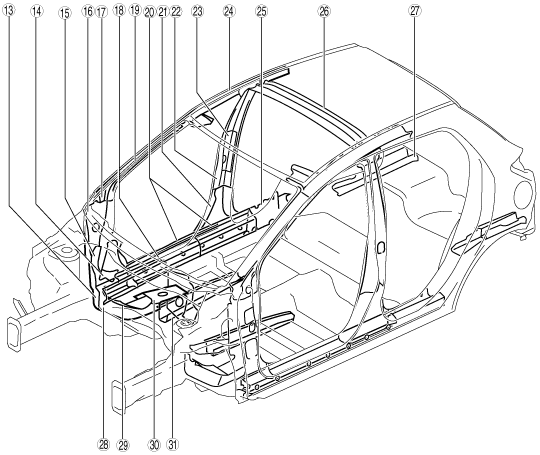

NO.	Part Name		Strength (MPa)
1	Cowl side panel		590
2	Hinge gusset		590
3	Hinge pillar (inner)		590
4	Front pillar (inner)		590
5	Crossmember No.2		590
6	Crossmember No.2.5		590
7	Side sill (inner, rear)		590
8	Roof rail (inner)		590
9	Rear side frame		590
10	Front side frame (inner)	Front	590
		Rear	590
11	Front frame (rear)		590
12	Front side frame (outer)		590
13	Dash side reinforcement		590
14	Dash reinforcement (lower)		590
15	Hinge pillar reinforcement		590
16	Hinge reinforcement		780
17	Front frame inner reinforcement		590
18	Side sill reinforcement		590
19	Front pillar reinforcement		780
20	Side sill (inner)	Front	780
		Rear	780
21	Center pillar reinforcement		590
22	Center pillar inner reinforcement		980
23	Center pillar reinforcement (upper)		590
24	Roof rail reinforcement		590
25	Side sill reinforcement (rear)		590
26	Roof reinforcement		980
27	Rear frame reinforcement		590
28	Dash side reinforcement		590
29	Front frame rear reinforcement		590
30	Front floor reinforcement		590
31	Front B frame		780

NO.	Part Name		Strength (MPa)
1	Cowl side panel		590
2	Hinge gusset		590
3	Hinge pillar (inner)		590
4	Front pillar (inner)		590
5	Crossmember No.2		590
6	Crossmember No.2.5		590
7	Side sill (inner, rear)		590
8	Roof rail (inner)		590
9	Rear side frame		590
10	Front side frame (inner)	Front	590
		Rear	590
11	Front frame (rear)		590
12	Front side frame (outer)		590
13	Dash side reinforcement		590
14	Dash reinforcement (lower)		590
15	Hinge pillar reinforcement		590
16	Hinge reinforcement		780
17	Front frame inner reinforcement		590
18	Side sill reinforcement		590
19	Front pillar reinforcement		780
20	Side sill (inner)	Front	780
		Rear	780
21	Center pillar reinforcement		590
22	Center pillar inner reinforcement		980
23	Center pillar reinforcement (upper)		590
24	Roof rail reinforcement		590
25	Side sill reinforcement (rear)		590
26	Roof reinforcement		980
27	Rear frame reinforcement		590
28	Dash side reinforcement		590
29	Front frame rear reinforcement		590
30	Front floor reinforcement		590
31	Front B frame		780
