CYLINDER HEAD DISASSEMBLY (II)

id011000500500

Caution

•  The end of the glow plug protrudes from the cylinder head (tightened surface of cylinder block). When removing/installing the cylinder head and placing the cylinder head on a workbench, be careful not to allow the end of the glow plug to contact the cylinder block or workbench. Otherwise, the end of the glow plug could be damaged.

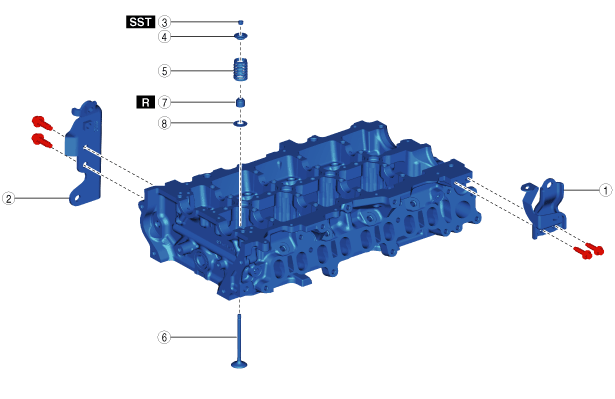

1.  Disassemble in the order indicated in the table.

bes3ze00000005

1	Seal cover bracket
2	Hanger bracket
3	Valve keeper (See Valve Keeper Disassembly Note.)
4	Upper valve spring seat
5	Valve spring
6	Valve
7	Valve seal (See Valve Seal Disassembly Note.)
8	Lower valve spring seat

Valve Keeper Disassembly Note

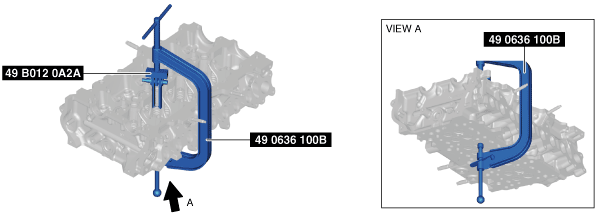

When using the SSTs (49 0636 100B, 49 B012 0A2A)

1.  Remove the valve keepers using the SSTs.

bes3ze00000006

When using the SST (49 JE02 0A2) [Europe only]

1.  Remove the valve keepers using the SST.

bes3ze00000007

Valve Seal Disassembly Note

1.  Remove the valve seals using the pliers.

bes2ze00000009
