VALVE, VALVE GUIDE INSPECTION
id011000506200
1. Measure the valve head margin thickness using a vernier caliper.
-
• If it is less than the standard specification, replace the valve.
-
Standard valve head margin thickness
-
IN: 1.50—1.70 mm {0.0591—0.0669 in}
EX: 1.68—1.88 mm {0.0662—0.0740 in}
2. Measure the length of the each valve using a vernier caliper.
-
• If it is less than the minimum specification, replace the valve.
-
Standard valve length
-
IN: 97.07—97.37 mm {3.822—3.833 in}
EX: 96.99—97.29 mm {3.819—3.830 in}
-
Minimum valve length
-
IN: 96.85 mm {3.813 in}
EX: 96.77 mm {3.810 in}
3. Measure the valve stem diameter of each valve using the micrometer. Measurement positions total six and are in the X and Y directions, at three points (A, B, and C) as shown in the figure.
-
• If it is less than the minimum specification, replace the valve.
-
Standard valve stem diameter
-
IN: 5.470—5.485 mm {0.2154—0.2159 in}
EX: 5.465—5.480 mm {0.2152—0.2157 in}
-
Minimum valve stem diameter
-
IN: 5.424 mm {0.2135 in}
EX: 5.419 mm {0.2133 in}
4. Measure the inner diameter of each valve guide using the caliper gauge. Measurement positions total six and are in the X and Y directions, at three points (A, B, and C) as shown in the figure.
-
• If it is not within the specification, replace the valve guide.
-
Standard valve guide inner diameter
-
IN: 5.510—5.530 mm {0.2170—0.2177 in}
EX: 5.510—5.530 mm {0.2170—0.2177 in}
5. Calculate the clearance between the valve stem and the valve guide by subtracting the inner diameter of the valve guide from the outer diameter of the corresponding valve stem.
-
• If it exceeds the maximum specification, replace the valve or valve guide.
-
Standard clearance between valve stem and guide
-
IN: 0.025—0.060 mm {0.0010—0.0023 in}
EX: 0.030—0.065 mm {0.0012—0.0025 in}
-
Maximum clearance between valve stem and guide
-
0.10 mm {0.0039 in}

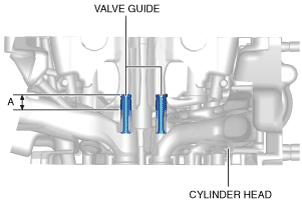

6. Measure the projection height (dimension A) of each valve guide using the vernier caliper.
-
• If it is not within the specification, replace the valve guide.
-
Standard valve guide projection height
-
14.8—15.3 mm {0.583—0.602 in}
