CYLINDER HEAD COVER [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0110q3105000

Purpose, Function

• The cylinder head cover prevents foreign matter penetration and engine oil spatter.

• The oil baffle plate reduces engine oil consumption by separating the engine oil from the blow-by gas.

Construction

• The lightweight cylinder head cover is made of hard plastic with excellent noise absorption.

• The cylinder head cover has the following parts:

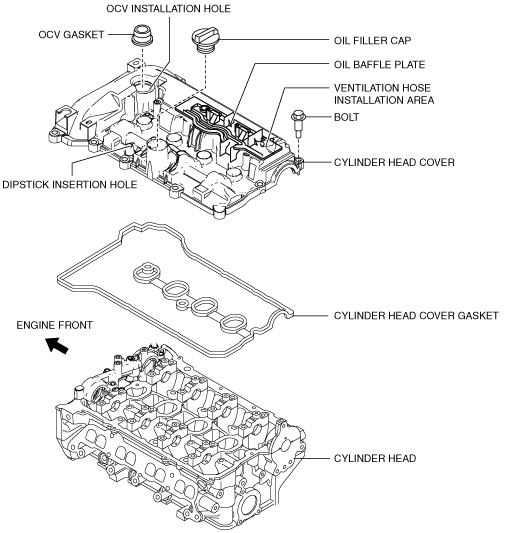

SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1 exhaust system)

am2zzn00003075

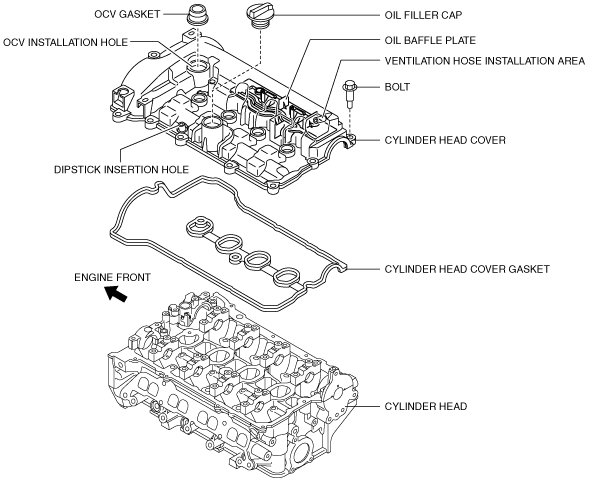

SKYACTIV-G 1.5 (with 4-2-1 exhaust system)

am2zzn00003076
