LUBRICATION SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0111q3002100


Outline

•  Pressure loss is reduced by optimizing the oil passage.
•  With the adoption of the chain drive type oil pump, oil pump drive force has been reduced.
•  With the adoption of the oil shower pipe, sliding resistance has been reduced.
•  With the adoption of the engine oil solenoid valve, oil pump discharge pressure can be controlled (hydraulic two-step control). (SKYACTIV-G 1.5 (with 4-2-1 exhaust system))

Structural View

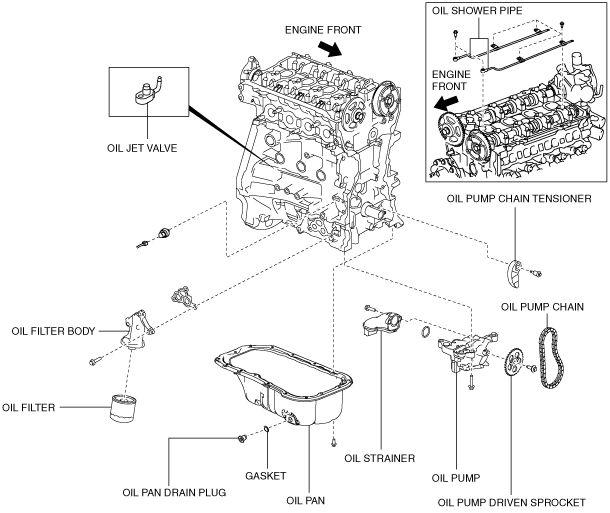

SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1 exhaust system)

am2zzn00002663

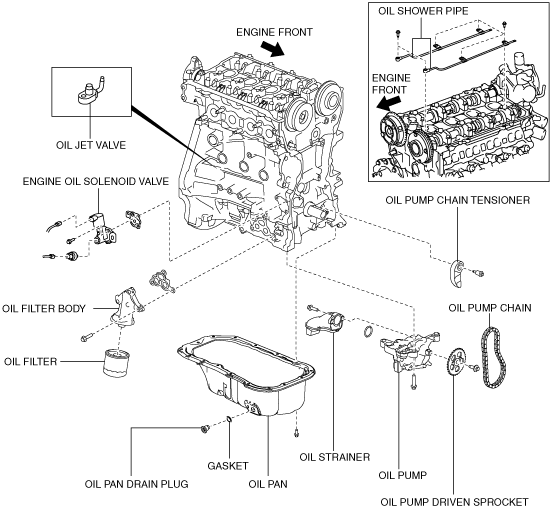

SKYACTIV-G 1.5 (with 4-2-1 exhaust system)

am2zzn00002664

Flow View

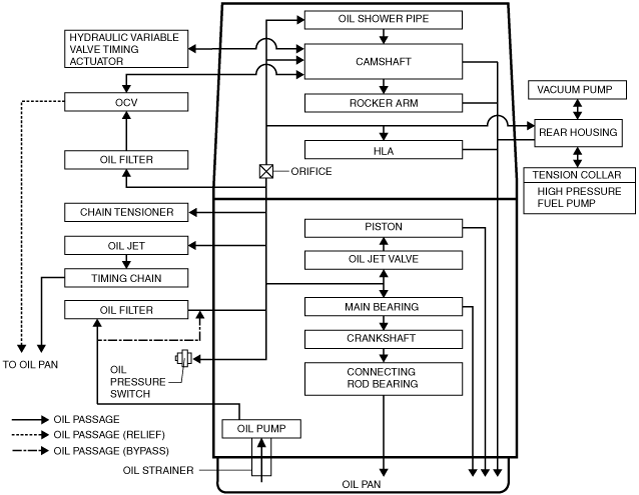

SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1 exhaust system)

am2zzn00002665

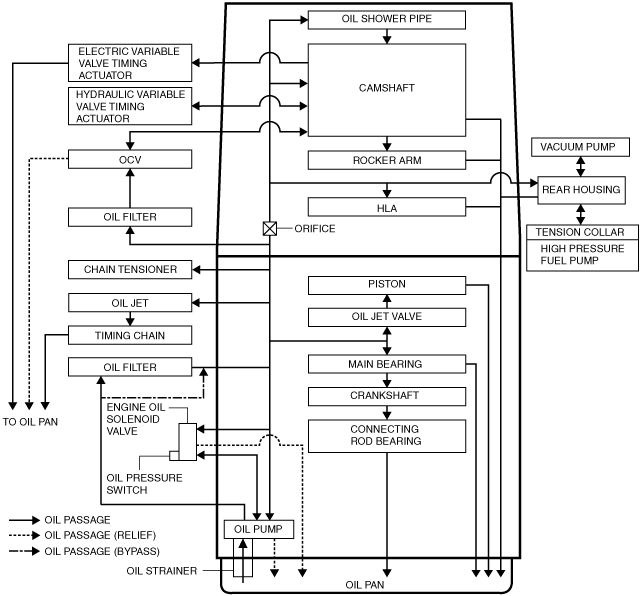

SKYACTIV-G 1.5 (with 4-2-1 exhaust system)

am2zzn00002666

Structure

•  Consists of the following parts:

Oil filter
(See OIL FILTER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Oil pan
(See OIL PAN [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Oil strainer
(See OIL STRAINER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Oil pump
(See OIL PUMP [SKYACTIV-G 1.3, SKYACTIV-G 1.5 (WITH 4-1 EXHAUST SYSTEM)].)
(See OIL PUMP [SKYACTIV-G 1.5 (WITH 4-2-1 EXHAUST SYSTEM)].)
Oil jet valve
(See OIL JET VALVE [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Engine oil solenoid valve
(See ENGINE OIL SOLENOID VALVE [SKYACTIV-G 1.5 (WITH 4-2-1 EXHAUST SYSTEM)].)
Oil shower pipe
(See OIL SHOWER PIPE [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
