COOLING SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0112q3002800

Outline

• Passing water resistance is reduced by improvement of the engine coolant passage shape.

• Pump efficiency has been improved by changing the water pump impeller to a closed impeller.

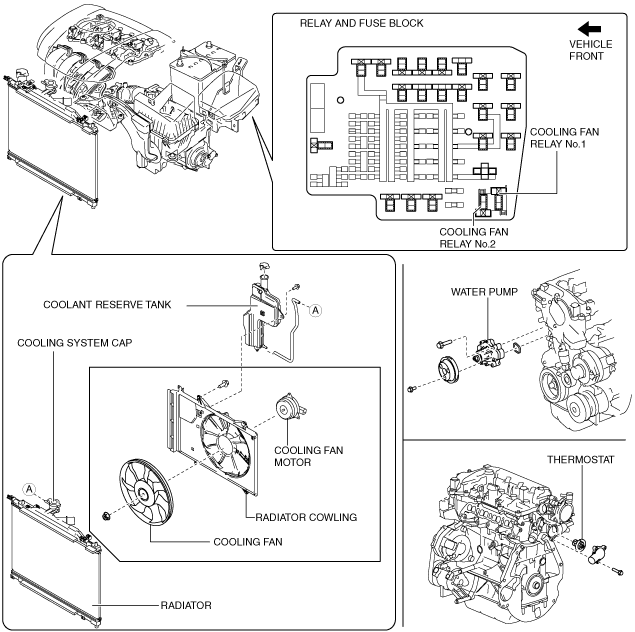

Structural View

am2zzn00002667

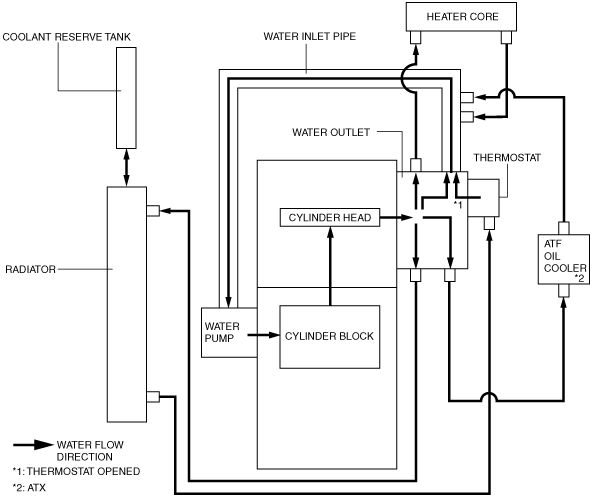

Flow Chart

am2zzn00002668

Structure

• Consists of the following parts:

Radiator	(See RADIATOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Cooling system cap	(See COOLING SYSTEM CAP [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Thermostat	(See THERMOSTAT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Water pump	(See WATER PUMP [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Cooling fan component	(See COOLING FAN COMPONENT [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Cooling fan relay	(See COOLING FAN RELAY [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
