•  The vacuum pump ensures vacuum required for braking force to compensate for the decrease in intake manifold vacuum applied to the power brake unit caused by the retard intake valve closing.

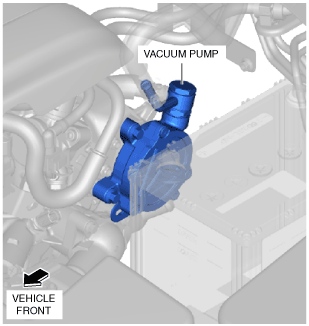

•  The vacuum pump is located on the engine (rear).

am2zzn00003129

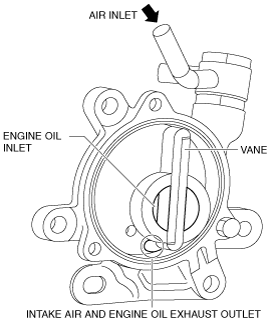

•   For smooth vane rotation, a single-vane type vacuum pump equipped with a lubrication passage has been adopted for circulating a part of the engine oil.

am2zzn00003130

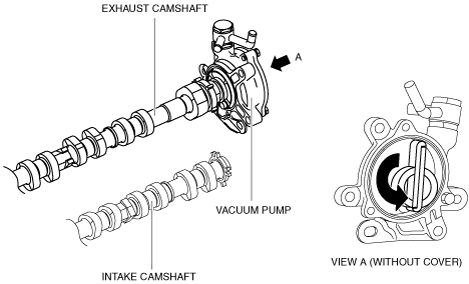

•  Because the vacuum pump is directly engaged with the exhaust camshaft, the vane in the vacuum pump rotates together with the exhaust camshaft, and the vacuum chamber is expanded and vacuum is generated.

am2zzn00003131

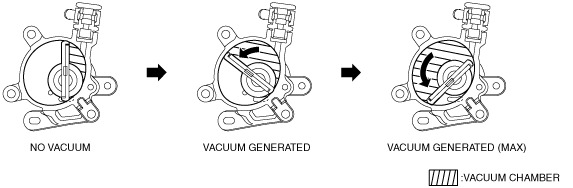

Vacuum generation mechanism

am2zzn00003591

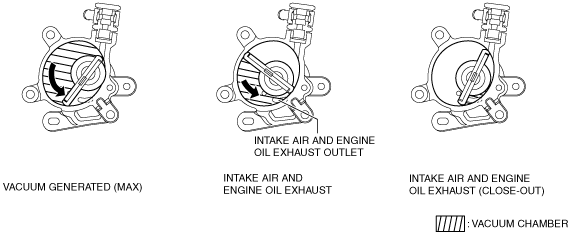

Intake air and engine oil exhaust mechanism

am2zzn00003132
