FUEL TANK [SKYACTIV-D 1.5]

id0114q2104100


Purpose, Function

•  The fuel tank stores fuel safely.

Construction

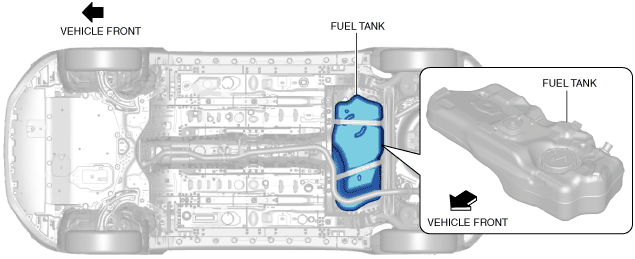

•  The fuel tank is located under the rear seat.
am2zzn00003276
•  The fuel tank is made of plastic.

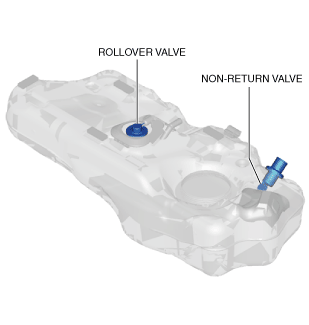

•  The following parts are integrated in the fuel tank.
am2zzn00003277
•  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-D 1.5].)
•  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-D 1.5].)
