POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0116q1148900
Purpose, Outline
• The positive crankcase ventilation system prevents release of blow-by gas (unburnt gas) into the atmosphere.
• The intake manifold vacuum introduces blow-by gas to the intake manifold via the PCV valve and the ventilation hose.

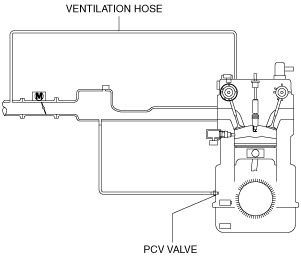

System Diagram
Structure
• The positive crankcase ventilation system consists of the following parts:
|
Part name
|
Reference
|
|
PCV valve
|
|
|
Ventilation hose
|
―
|
