i-stop OFF SWITCH [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1008000

Purpose/Function

• i-stop control is inhibited by turning on the i-stop OFF switch.

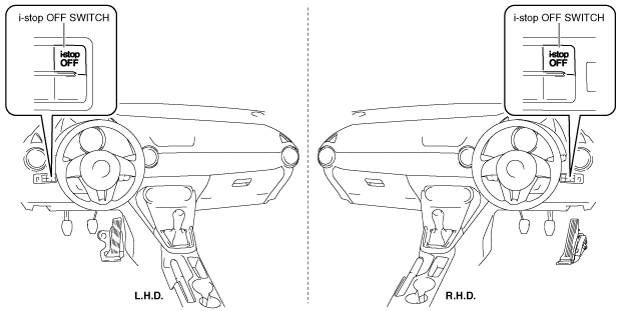

Construction

• Installed to the cluster switch.

am2zzn00003396

Operation

• The i-stop control is inhibited when the i-stop OFF switch on-signal from the instrument cluster is received.

am2zzn00003397

Fail-safe

• Not applicable
