ADJUSTABLE SPEED LIMITER WARNING ALARM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0140q1300300
Purpose
Function
am2zzn00003436
|
Construction
Operation

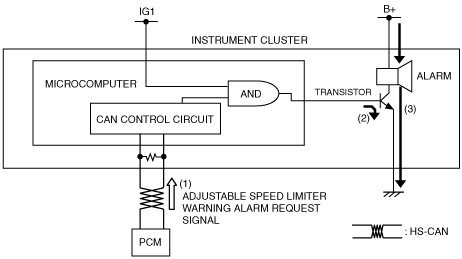

1. The instrument cluster receives (1) the adjustable speed limiter warning alarm request signal from the PCM.
2. The instrument cluster microcomputer turns the transistor on (2) based on the adjustable speed limiter warning alarm request signal.
3. When the transistor turns on, a ground circuit with the alarm is established and the alarm sounds (3).
am2zzn00003437
|
Fail-safe
