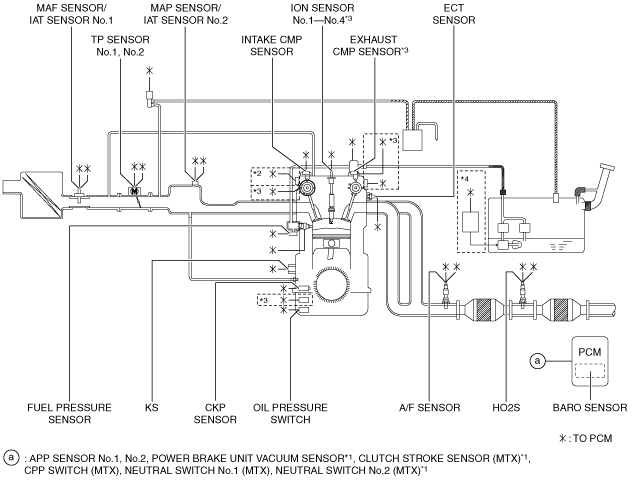

CONTROL SYSTEM DIAGRAM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1800300

am2zzw00012344

*1 :With i-stop system

*2 :SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1 exhaust system)

*3 :SKYACTIV-G 1.5 (with 4-2-1 exhaust system)

*4 :With fuel pump control module
