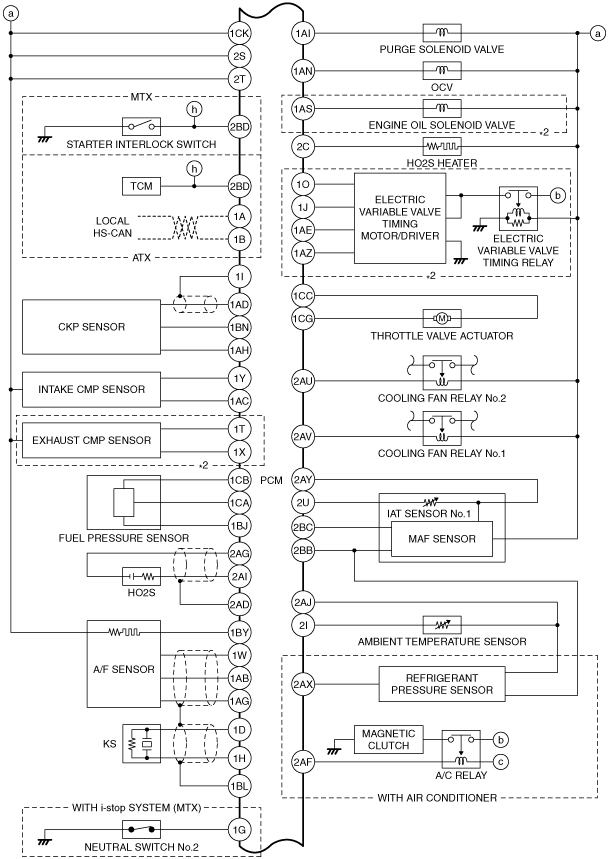

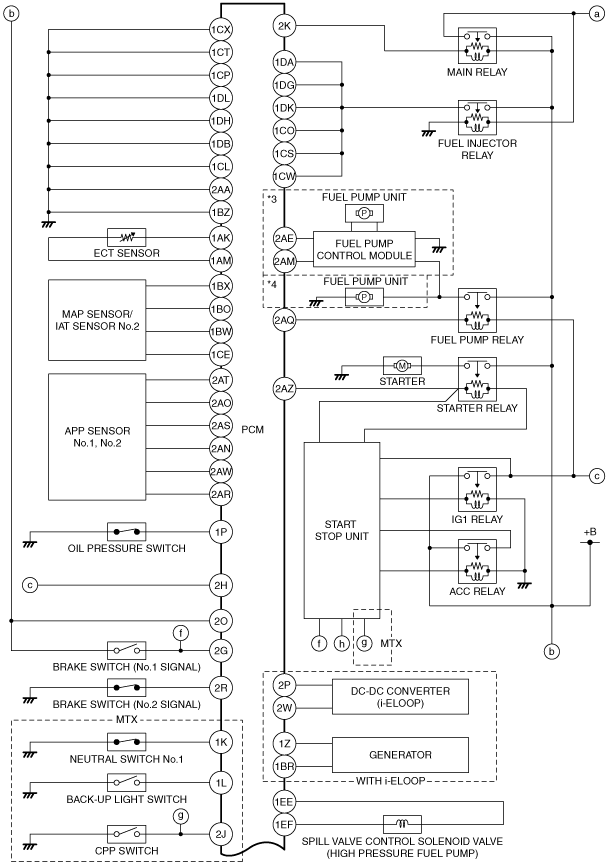

CONTROL SYSTEM WIRING DIAGRAM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1800400

am2zzw00012345

am2zzw00012346

am2zzw00012347

*1 :SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1exhaust system)

*2 :SKYACTIV-G 1.5 (with 4-2-1exhaust system)

*3 :With fuel pump control module

*4 :Without fuel pump control module
