ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5]

id0140z5300600

Purpose, Function

• Informs the driver of the adjustable speed limiter control status.

Construction

• The adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green) is equipped in the instrument cluster.

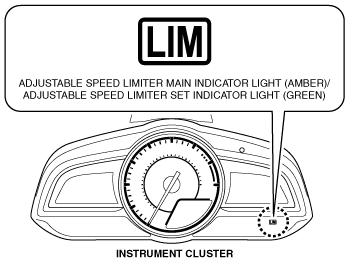

• Digital speedometer type:

am2zzn00003854

• Analog speedometer type (Type A):

am2zzn00003718

Operation

Adjustable speed limiter main indicator light (amber) illumination condition

• The indicator light illuminates amber when the speed limiter switch is pressed and the adjustable speed limiter is activated.

Adjustable speed limiter set indicator light (green) illumination condition

• The indicator light illuminates green when a speed has been set.

• The PCM sends an adjustable speed limiter main indicator light (amber) or adjustable speed limiter set indicator light (green) illumination request to the instrument cluster via CAN communication.
