ENGINE DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.5]
id0180q2002700
Purpose of Adoption

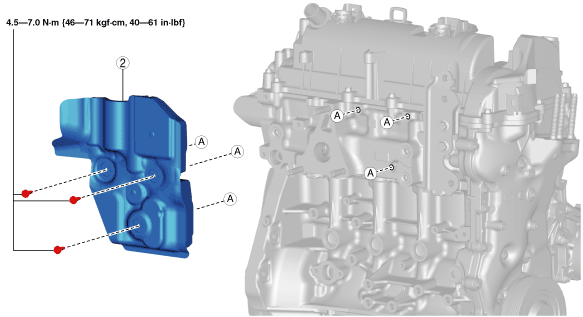

• As shown in the following illustration, insulator No.1 (blue-colored 2 part) has been adopted to the cylinder head for engine noise absorption.
Service Point
• Not applicable
Common Inquiry
• Not applicable
Other
• The No.1 installation area acts as a floating structure to control the noise transmission from the engine.
