ABS

id041300183700


Outline

•  Electronic Brakeforce Distribution (EBD) has been adopted for improved safety.
•  The ABS HU/CM, integrating both the hydraulic unit (HU) and control module (CM), has been adopted, resulting in a size and weight reduction of the system.
•  An enhanced malfunction diagnosis system made possible by the use of Mazda Modular Diagnostic System (M-MDS) has improved serviceability.
•  Serviceability improved by the automatic configuration function.

Structural View

L.H.D.

am2zzn00002684

R.H.D.

am2zzn00002685

Vehicle rear side

am2zzn00002686

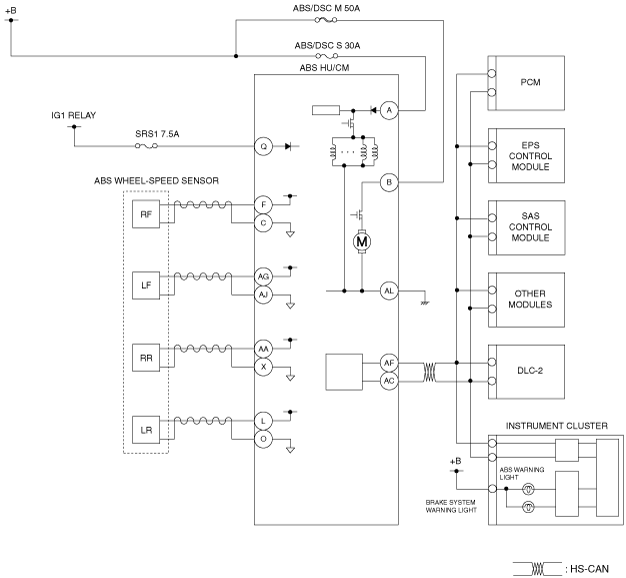

System Wiring Diagram

am2zzn00003587

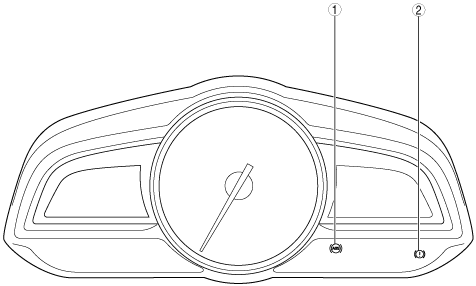

Warning light and indicator light

am2zzn00002566

No.

Warning/Indicator

Name

Function
1
ABS warning light
•  When the ABS control is disabled, the warning light illuminates to notify the driver
2
Brake system warning light
•  When the parking brake is applied, the warning light illuminates to notify the driver.
•  When the ABS control and EBD control are disabled with the parking brake released, the warning light illuminates to notify the driver
