SYMPTOM TROUBLESHOOTING SYSTEM WIRING DIAGRAM [MANUAL AIR CONDITIONER]

id0703c2700200

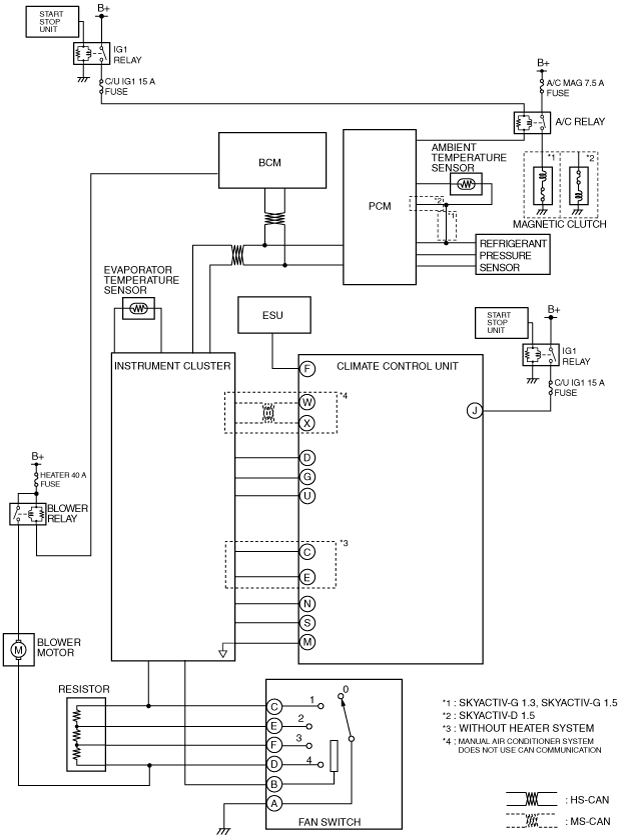

RECIRCULATE/FRESH Lever Type Climate control Unit

am2zzw00012069

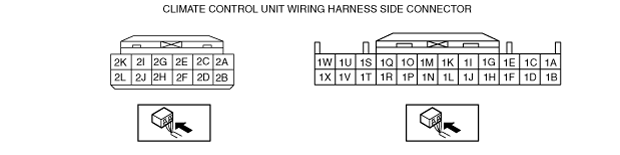

ac5uuw00002141

RECIRCULATE/FRESH Switch Type Climate control Unit

am2zzn00002158

ac5uuw00002141
