•  The air intake actuator opens/closes the air intake door in the blower unit to switch the air intake.

•  The air intake actuator opens/closes the air intake door to the FRESH or RECIRCULATE position by the motor drive.

•  A mechanical lock-type air intake actuator has been adopted.

•  The air intake actuator is located in the blower unit.

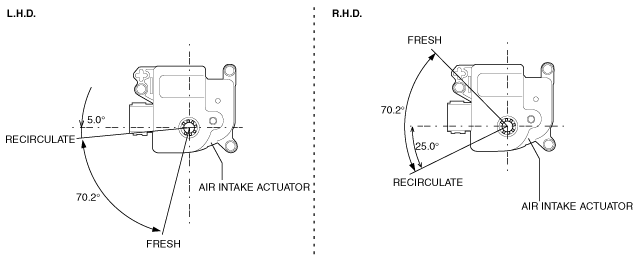

•  The operation range of the air intake actuator is as indicated in the diagram.

•  For the air intake actuator operation, refer to the FULL-AUTO AIR CONDITIONING SYSTEM [FULL-AUTO AIR CONDITIONER]. (See FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER].)

•  Not applicable
