ON-BOARD DIAGNOSTIC [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
id0802b2001500
Outline
Function
Self-diagnostic function
DTC |
System malfunction location |
Fail-safe function |
Drive cycle |
Self test type*1 |
Memory function |
|||
---|---|---|---|---|---|---|---|---|
M-MDS display |
Air bag system warning light |
|||||||
Flashing pattern |
Priority ranking |
|||||||
B0001:11
|
19
|
![]() |
15
|
Driver-side air bag module (inflator No.1) circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B0001:12
|
Driver-side air bag module (inflator No.1) circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B0001:13
|
Driver-side air bag module (inflator No.1) circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B0001:19
|
Short circuit to driver-side air bag module (inflator No.1) and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B0001:1A
|
Driver-side air bag module (inflator No.1) circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B0001:55
|
54
|
![]() |
6
|
Configuration setting error (driver-side air bag module (inflator No.1) structural malfunction)
|
—
|
—
|
C, D
|
×
|
B0002:11
|
19
|
![]() |
15
|
Driver-side air bag module (inflator No.2) circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B0002:12
|
Driver-side air bag module (inflator No.2) circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B0002:13
|
Driver-side air bag module (inflator No.2) circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B0002:19
|
Short circuit to driver-side air bag module (inflator No.2) and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B0002:1A
|
Driver-side air bag module (inflator No.2) circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B0002:55
|
54
|
![]() |
6
|
Configuration setting error (driver-side air bag module (inflator No.2) structural malfunction)
|
—
|
—
|
C, D
|
×
|
B0003:53
|
―
|
Flashing
|
4
|
Operation (deployment) inhibited
|
—
|
—
|
C, D
|
×
|
B0010:11
|
21
|
![]() |
14
|
Passenger-side air bag module circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B0010:12
|
Passenger-side air bag module circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B0010:13
|
Passenger-side air bag module circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B0010:19
|
Short circuit to passenger-side air bag module and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B0010:1A
|
Passenger-side air bag module (inflator circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B0010:55
|
54
|
![]() |
6
|
Configuration setting error (passenger-side air bag module (inflator structural malfunction)
|
—
|
—
|
C, D
|
×
|
B0050:55
|
54
|
![]() |
6
|
Configuration setting error (driver-side buckle switch (structural malfunction)
|
—
|
—
|
C, D
|
×
|
B0052:55
|
Configuration setting error (passenger-side buckle switch (structural malfunction)
|
—
|
—
|
C, D
|
×
|
|||
B0094:11
|
42
|
![]() |
9
|
Crash zone sensor circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B0094:12
|
Crash zone sensor circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B0094:29
|
Crash zone sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
B0094:2B
|
Crash zone sensor circuit short to other air bag sensor circuit
|
—
|
—
|
C, D
|
×
|
|||
B0094:4A
|
Crash zone sensor ID error
|
—
|
—
|
C, D
|
×
|
|||
B0094:87
|
Signal reception error from crash zone sensor
|
—
|
—
|
C, D
|
×
|
|||
B0094:96
|
Crash zone sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
B0094:55
|
54
|
![]() |
6
|
Configuration setting error (crash zone sensor structural malfunction)
|
—
|
—
|
C, D
|
×
|
B00B5:11
|
49
|
![]() |
26
|
Seat track position sensor circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B00B5:12
|
Seat track position sensor circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B00B5:13
|
Seat track position sensor circuit open
|
—
|
—
|
C, D
|
×
|
|||
B00B5:1D
|
Seat track position sensor circuit out of range
|
—
|
—
|
C, D
|
×
|
|||
B00B5:2B
|
Short circuit to seat track position sensor and other air bag sensor circuits
|
—
|
—
|
C, D
|
×
|
|||
B00B5:55
|
54
|
![]() |
6
|
Configuration setting error (seat track position sensor structural malfunction)
|
—
|
—
|
C, D
|
×
|
B00D2:01
|
―
|
―
|
―
|
Air bag system warning light malfunction
|
—
|
—
|
C, D
|
×
|
B00D2:29
|
―
|
―
|
―
|
Invalid signal to air bag system warning light
|
—
|
—
|
C, D
|
×
|
B00D5:01
|
18
|
![]() |
25
|
PAD indicator circuit open circuit or short to power supply
|
—
|
—
|
C, D
|
×
|
B00D5:29
|
PAD indicator communication error
|
—
|
—
|
C, D
|
×
|
|||
B00D5:55
|
Configuration setting error (indicator unit structural malfunction)
|
—
|
—
|
C, D
|
×
|
|||
B1011:95
|
58
|
![]() |
7
|
SAS control module connectors are poorly connected
|
—
|
—
|
C, D
|
×
|
B10FD:11
|
43
|
![]() |
13
|
Driver-side side air bag sensor circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B10FD:12
|
Driver-side side air bag sensor circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B10FD:29
|
Driver-side side air bag sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
B10FD:2B
|
Driver-side side air bag sensor circuit short to other air bag sensor circuit
|
—
|
—
|
C, D
|
×
|
|||
B10FD:4A
|
Driver-side side air bag sensor ID error
|
—
|
—
|
C, D
|
×
|
|||
B10FD:87
|
Signal reception error from driver-side side air bag sensor
|
—
|
—
|
C, D
|
×
|
|||
B10FD:96
|
Driver-side side air bag sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
B10FD:55
|
54
|
![]() |
6
|
Configuration setting error (driver-side side air bag sensor structural malfunction)
|
—
|
—
|
C, D
|
×
|
B10FE:11
|
44
|
![]() |
12
|
Passenger-side side air bag sensor circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B10FE:12
|
Passenger-side side air bag sensor circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B10FE:29
|
Passenger-side side air bag sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
B10FE:2B
|
Passenger-side side air bag sensor circuit short to other air bag sensor circuit
|
—
|
—
|
C, D
|
×
|
|||
B10FE:4A
|
Signal reception error from passenger-side side air bag sensor
|
—
|
—
|
C, D
|
×
|
|||
B10FE:87
|
Signal reception error from passenger-side side air bag sensor ID error
|
—
|
—
|
C, D
|
×
|
|||
B10FE:96
|
Passenger-side side air bag sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
B10FE:55
|
54
|
![]() |
6
|
Configuration setting error (passenger-side side air bag sensor structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1126:11
|
22
|
![]() |
20
|
Driver-side side air bag module circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B1126:12
|
Driver-side side air bag module circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B1126:13
|
Driver-side side air bag module circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B1126:19
|
Short circuit to driver-side side air bag module and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B1126:1A
|
Driver-side side air bag module circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B1126:55
|
54
|
![]() |
6
|
Configuration setting error (driver-side side air bag module structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1127:11
|
23
|
![]() |
19
|
Passenger-side side air bag module circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B1127:12
|
Passenger-side side air bag module circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B1127:13
|
Passenger-side side air bag module circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B1127:19
|
Short circuit to passenger-side side air bag module and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B1127:1A
|
Passenger-side side air bag module circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B1127:55
|
54
|
![]() |
6
|
Configuration setting error (passenger-side side air bag module structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1128:11
|
24
|
![]() |
22
|
Driver-side curtain air bag module circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B1128:12
|
Driver-side curtain air bag module circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B1128:13
|
Driver-side curtain air bag module circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B1128:19
|
Short circuit to driver-side curtain air bag module and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B1128:1A
|
Driver-side curtain air bag module circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B1128:55
|
54
|
![]() |
6
|
Configuration setting error (driver-side curtain air bag module structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1129:11
|
25
|
![]() |
21
|
Passenger-side curtain air bag module circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B1129:12
|
Passenger-side curtain air bag module circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B1129:13
|
Passenger-side curtain air bag module circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B1129:19
|
Short circuit to passenger-side curtain air bag module and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B1129:1A
|
Passenger-side curtain air bag module circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B1129:55
|
54
|
![]() |
6
|
Configuration setting error (passenger-side curtain air bag module structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1193:00
|
13
|
![]() |
3
|
SAS control module operation (deployment)
|
—
|
—
|
C, D
|
×
|
B1206:00
|
―
|
―
|
―
|
SAS control module operation (deployment) (fuel cut signal output)
|
―
|
―
|
C, D
|
×
|
B1211:11
|
38
|
![]() |
18
|
Driver-side pre-tensioner seat belt circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B1211:12
|
Driver-side pre-tensioner seat belt circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B1211:13
|
Driver-side pre-tensioner seat belt circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B1211:19
|
Short circuit to driver-side pre-tensioner seat belt and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B1211:1A
|
Driver-side pre-tensioner seat belt circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B1211:55
|
54
|
![]() |
6
|
Configuration setting error (driver-side pre-tensioner seat belt structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1214:11
|
39
|
![]() |
17
|
Passenger-side pre-tensioner seat belt circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B1214:12
|
Passenger-side pre-tensioner seat belt circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B1214:13
|
Passenger-side pre-tensioner seat belt circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B1214:19
|
Short circuit to passenger-side pre-tensioner seat belt and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B1214:1A
|
Passenger-side pre-tensioner seat belt circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B1214:55
|
54
|
![]() |
6
|
Configuration setting error (passenger-side pre-tensioner seat belt structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1226:02
|
36
|
![]() |
11
|
Signal reception error from driver or passenger-side pressure sensor
|
—
|
—
|
C, D
|
×
|
B1226:29
|
Driver-side pressure sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
B1226:4A
|
Driver-side pressure sensor ID mismatch
|
—
|
—
|
C, D
|
×
|
|||
B1226:87
|
Driver-side pressure sensor circuit open
|
—
|
—
|
C, D
|
×
|
|||
B1226:96
|
Driver-side pressure sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
B1226:55
|
54
|
![]() |
6
|
Configuration setting error (driver-side pressure sensor structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1227:29
|
37
|
![]() |
10
|
Passenger-side pressure sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
B1227:4A
|
Passenger-side pressure sensor ID mismatch
|
—
|
—
|
C, D
|
×
|
|||
B1227:87
|
Passenger-side pressure sensor circuit open
|
—
|
—
|
C, D
|
×
|
|||
B1227:96
|
Passenger-side pressure sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
B1227:55
|
54
|
![]() |
6
|
Configuration setting error (passenger-side pressure sensor structural malfunction)
|
—
|
—
|
C, D
|
×
|
[B1228:11]
|
35
|
![]() |
16
|
Lap pre-tensioner seat belt circuit short to body ground
|
—
|
—
|
C, D
|
×
|
[B1228:12]
|
Lap pre-tensioner seat belt circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
[B1228:13]
|
Lap pre-tensioner seat belt circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
[B1228:19]
|
Short circuit to lap pre-tensioner seat belt and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
[B1228:1A]
|
Lap pre-tensioner seat belt circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
[B1228:55]
|
54
|
![]() |
6
|
Configuration setting error (lap pre-tensioner seat belt structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1410:11
|
33
|
![]() |
24
|
Rear pre-tensioner seat belt (L.H.D.:LH/R.H.D.:RH) circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B1410:12
|
Rear pre-tensioner seat belt (L.H.D.:LH/R.H.D.:RH) circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B1410:13
|
Rear lap pre-tensioner seat belt (L.H.D.:LH/R.H.D.:RH) circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B1410:19
|
Short circuit to rear pre-tensioner seat belt (L.H.D.:LH/R.H.D.:RH) and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B1410:1A
|
Rear pre-tensioner seat belt (L.H.D.:LH/R.H.D.:RH) circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B1410:55
|
54
|
![]() |
6
|
Configuration setting error (rear pre-tensioner seat belt (L.H.D.:LH/R.H.D.:RH) structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1412:11
|
32
|
![]() |
23
|
Rear pre-tensioner seat belt (L.H.D.:RH/R.H.D.:LH) circuit short to body ground
|
—
|
—
|
C, D
|
×
|
B1412:12
|
Rear pre-tensioner seat belt (L.H.D.:RH/R.H.D.:LH) circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
B1412:13
|
Rear pre-tensioner seat belt (L.H.D.:RH/R.H.D.:LH) circuit open circuit or resistance high
|
—
|
—
|
C, D
|
×
|
|||
B1412:19
|
Short circuit to rear pre-tensioner seat belt (L.H.D.:RH/R.H.D.:LH) and other air bag module circuits
|
—
|
—
|
C, D
|
×
|
|||
B1412:1A
|
Rear pre-tensioner seat belt (L.H.D.:RH/R.H.D.:LH) circuit resistance low
|
—
|
—
|
C, D
|
×
|
|||
B1412:55
|
54
|
![]() |
6
|
Configuration setting error (rear pre-tensioner seat belt (L.H.D.:RH/R.H.D.:LH) structural malfunction)
|
—
|
—
|
C, D
|
×
|
[B1417:11]
|
41
|
![]() |
8
|
Passenger-side crash zone sensor circuit short to body ground
|
—
|
—
|
C, D
|
×
|
[B1417:12]
|
Passenger-side crash zone sensor circuit short to power supply
|
—
|
—
|
C, D
|
×
|
|||
[B1417:29]
|
Passenger-side cash zone sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
[B1417:2B]
|
Passenger-side crash zone sensor circuit short to other air bag sensor circuit
|
—
|
—
|
C, D
|
×
|
|||
[B1417:4A]
|
Passenger-side crash zone sensor ID error
|
—
|
—
|
C, D
|
×
|
|||
[B1417:87]
|
Signal reception error from passenger-side crash zone sensor
|
—
|
—
|
C, D
|
×
|
|||
[B1417:96]
|
Passenger-side cash zone sensor internal malfunction
|
—
|
—
|
C, D
|
×
|
|||
[B1417:55]
|
54
|
![]() |
6
|
Configuration setting error (passenger-side crash zone sensor structural malfunction)
|
—
|
—
|
C, D
|
×
|
B143A:00
|
―
|
―
|
―
|
SAS control module operation (deployment) signal output
|
—
|
—
|
C, D
|
×
|
B1485:55
|
54
|
![]() |
6
|
Configuration setting error (occupancy sensor structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1D74:55
|
54
|
![]() |
6
|
Configuration setting error (PAD switch structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1D75:55
|
54
|
![]() |
6
|
Configuration setting error (PAD switch structural malfunction)
|
—
|
—
|
C, D
|
×
|
B1D75:62
|
56
|
![]() |
27
|
PAD switch circuit open circuit or short to body ground
|
—
|
—
|
C, D
|
×
|
C0061:29
|
―
|
―
|
―
|
Low-G sensor (lateral-G) in SAS control module (internal circuit disabled)
|
—
|
—
|
C, D
|
×
|
C0062:29
|
Low-G sensor (forward-G) in SAS control module (internal circuit disabled)
|
—
|
—
|
C, D
|
×
|
|||
C0063:29
|
Yaw rate sensor in SAS control module (internal circuit disabled)
|
—
|
—
|
C, D
|
×
|
|||
U0001:88
|
―
|
Continuously illuminated
|
1
|
Module communication error (HS-CAN)
|
—
|
—
|
C, D
|
×
|
U0100:00
|
14
|
![]() |
5
|
PCM Communication error or invalid value reception
|
—
|
—
|
C, D
|
×
|
U0155:00
|
14
|
![]() |
5
|
Communication error with instrument cluster
|
—
|
—
|
C, D
|
×
|
U2100:00
|
―
|
Flashing
|
4
|
Configuration not set
|
—
|
—
|
C, D
|
×
|
U2107:00
|
―
|
―
|
―
|
SAS control module operation (deployment) signal output
|
―
|
―
|
C, D
|
×
|
U3000:49
|
―
|
Continuously illuminated
|
1
|
SAS control module internal malfunction
|
—
|
—
|
C, D
|
×
|
12
|
![]() |
2
|
||||||
U3003:16
|
―
|
Continuously illuminated
|
1
|
SAS control module power supply voltage decreases (less than 8 V)
|
—
|
—
|
C, D
|
×
|
U3003:17
|
SAS control module power supply voltage increases (16 V or more)
|
—
|
—
|
C, D
|
×
|

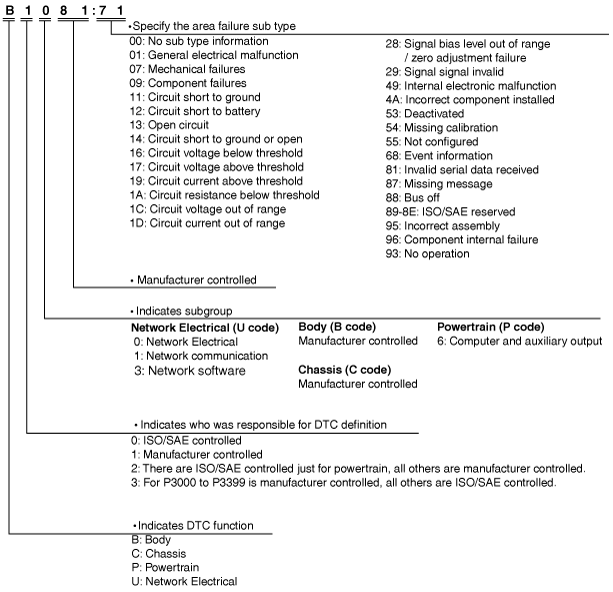

ac5uun00001107
|
ac5wzn00001331
|
Snapshot data
Snapshot data item |
Unit |
Definition |
Data read/use method |
Corresponding PID data monitor item |
|
---|---|---|---|---|---|
AAT
|
°C
|
°F
|
Ambient temperature
|
—
|
—
|
APP_STATUS
|
Accelerator Pedal Off/
Under20%/
Over20%/
FAIL
|
Accelerator pedal position status
|
—
|
—
|
|
CFG_STATUS
|
Config Complete/
Not Configured/
Config Error
|
Instrument cluster configuration status
|
—
|
—
|
|
ECT_STATUS
|
Under 0 degrees C/
0-Under 80 degrees C/
Over 80 degrees C/
FAIL
|
Engine coolant status
|
—
|
—
|
|
FAULT_CNT
|
—
|
Number of malfunction detections
|
—
|
—
|
|
FIRST_DET_IG
|
hh:mm:ss*1
|
Time when initial malfunction occurs (IG-ON counter)
• Elapsed time from when ignition is switched ON (engine off or on) until SAS control module detects first malfunction*3
|
—
|
—
|
|
IC_VPWR
|
V
|
Instrument cluster power supply voltage
|
• The SAS control module constantly receives the power supply voltage value of the instrument cluster sent via CAN signal from the instrument cluster.
• If a DTC is detected, the SAS control module records the power supply voltage of the instrument cluster when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).
|
VPWR*2
|
|
IG-ON_TIMER
|
hh:mm:ss*1
|
Elapsed time since ignition was switched ON (engine off or on)
|
• The SAS control module constantly receives the elapsed time since the ignition was switched ON (engine off or on) sent via CAN signal from the instrument cluster.
• If a DTC is detected, the SAS control module records the elapsed time since the ignition was switched ON (engine off or on) when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).
|
—
|
|
LAST_CLR
|
hh:mm:ss*1
|
Repair time for last malfunction (B+ counter)
• Elapsed time from when battery is connected until SAS control module detects that last malfunction is repaired*3
|
—
|
—
|
|
LAST_CLR_IG
|
hh:mm:ss*1
|
Repair time for last malfunction (IG-ON counter)
• Elapsed time from when ignition is switched ON (engine off or on) until SAS control module detects that last malfunction is repaired*3
|
—
|
—
|
|
LAST_DET
|
hh:mm:ss*1
|
Time when last malfunction occurs (B+ counter)
• Elapsed time from when battery is connected until SAS control module detects last malfunction*3
|
—
|
—
|
|
LAST_DET_IG
|
hh:mm:ss*1
|
Time when last malfunction occurs (IG-ON counter)
• Elapsed time from when ignition is switched ON (engine off or on) until SAS control module detects last malfunction*3
|
—
|
—
|
|
PWR_MODE_KEY
|
Key Out/
Key Recently Out (Position 0)/
Accessory (Position 1)/
Post Ignition (Position 2)/
Ignition On (Position 2)/
Running (Position 2)/
Running - Starting
|
• Key Out: Ignition switched off
• Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched off
• Accessory (Position 1): Ignition is switched to ACC
• Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON (engine off or on)
• Ignition On (Position 2): Ignition switched ON (engine off)
• Running (Position 2): Ignition switched ON (engine on)
• Running - Starting: Cranking condition
|
• The SAS control module constantly receives the ignition switch status sent via CAN signal from the instrument cluster.
• If a DTC is detected, the SAS control module records the ignition switch status when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).
|
—
|
|
RPM_STATUS
|
Engine Stop/
Under1500rpm/
Over1500rpm/
FAIL
|
Engine speed status
|
• The SAS control module constantly receives the engine speed sent via CAN signal from the instrument cluster.
• If a DTC is detected, the SAS control module records the engine speed when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).
|
TACHOMTR*2
|
|
SHIFT_STATUS
|
P/N/
D/
R/
FAIL
|
Selector lever position status
|
• The SAS control module constantly receives the selector lever position sent via CAN signal from the instrument cluster.
• If a DTC is detected, the SAS control module records the selector lever position when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).
|
—
|
|
TOTAL_DIST
|
km
|
miles
|
Accumulated total traveled distance from completion of vehicle until SAS control module detects DTC (Odometer value in instrument cluster)
|
The total traveled distance from which the SAS control module detects DTCs to the present can be calculated by performing the following procedure.
1. Verify the odometer value in the instrument cluster.
2. Verify the snapshot data item TOTAL_DIST.
3. Subtract 2 from 1.
|
—
|
TOTAL_TIME
|
hh:mm:ss*1
|
Accumulated total elapsed time since vehicle completion until SAS control module detects a DTC*3
|
The elapsed time from which the SAS control module detects DTCs to the present can be calculated by performing the following procedure.
1. Verify the instrument cluster PID item TOTAL_TIME.
2. Verify the snapshot data item TOTAL_TIME.
3. Subtract 2 from 1.
|
TOTAL_TIME*2
|
|
VPWR
|
V
|
SAS control module power supply malfunction
|
—
|
VPWR_IGA
|
|
VSPD_STATUS
|
Stop/
0-10km/h/
Over10km/h/
FAIL
|
Vehicle speed status
|
• The SAS control module constantly receives the vehicle speed sent via CAN signal from the instrument cluster.
• If a DTC is detected, the SAS control module records the vehicle speed when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).
|
SPEEDOMTR*2
|

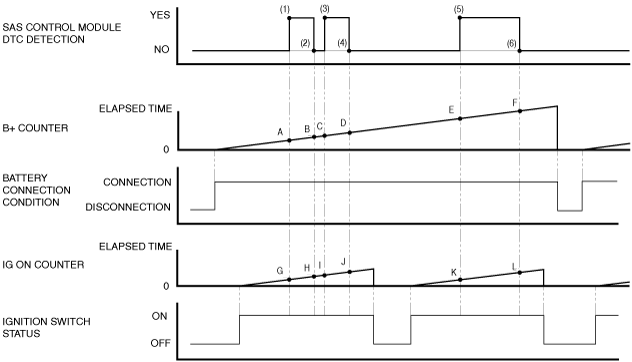

am3uun00003525
|
SAS control module DTC detection period |
Snapshot data |
||||||
---|---|---|---|---|---|---|---|
FAULT_CNT (Number of malfunction detections) |
TOTAL_TIME |
FIRST_DET_IG |
LAST_DET |
LAST_DET_IG |
LAST_CLR |
LAST_CLR_IG |
|
Number of malfunction detections |
Time when first malfunction occurs (B+ counter) |
Time when initial malfunction occurs (IG-ON counter) |
Time when last malfunction occurs (B+ counter) |
Time when last malfunction occurs (IG-ON counter) |
Repair time for last malfunction (B+ counter) |
Repair time for last malfunction (IG-ON counter) |
|
(1)
|
1
|
A
|
G
|
A
|
G
|
-
|
-
|
(2)
|
1
|
A
|
G
|
A
|
G
|
B
|
H
|
(3)
|
2
|
A
|
G
|
C
|
I
|
B
|
H
|
(4)
|
2
|
A
|
G
|
C
|
I
|
D
|
J
|
(5)
|
3
|
A
|
G
|
E
|
K
|
D
|
J
|
(6)
|
3
|
A
|
G
|
E
|
K
|
F
|
L
|
PID/Data monitoring function
PID |
Unit/Condition |
Data contents |
SAS control module terminal |
|
---|---|---|---|---|
AB_WL
(Air bag system warning light status)
|
Lamp_Off/Lamp_On/Plant_Mode/Unknown
|
• Air bag system warning light off: Lamp_Off
• Air bag system warning light on: Lamp_On
• Air bag system warning light status: Plant_Mode
• Air bag system warning light status: Unknown
|
3Q, 3S
|
|
D_SP_S_FLT
(Seat track position sensor malfunction status)
|
|
|||
D_SP_S_ST
(Seat track position sensor status)
|
|
|||
OCS_DTC_CLR
(Seat weight sensor DTC cleared status)
|
|
|||
P_OCS_ST
(Seat weight sensor status)
|
|
|||
PAD_SW
(Passenger air bag deactivation (PAD) switch status)
|
|
|||
PAD_SW_FLT
(Passenger air bag deactivation (PAD) switch malfunction status)
|
|
|||
RES_C_AB_D
(Driver-side curtain air bag module resistance nominal)
|
ohm
|
Continuous: 0.81–6.42 ohms
|
1W, 1U
|
|
RES_C_AB_P
(Passenger-side curtain air bag module resistance nominal)
|
ohm
|
Continuous: 0.81–6.42 ohms
|
1AA, 1Z
|
|
RES_F_AB1_D
(Driver-side air bag module (inflatorNo.1) resistance nominal)
|
ohm
|
Continuous: 0.99–6.42 ohms
|
3C, 3G
|
|
RES_F_AB1_P
(Passenger-side air bag module (inflatorNo.1) resistance nominal)
|
ohm
|
Continuous: 0.81–6.42 ohms
|
3K, 3N
|
|
RES_F_AB2_D
(Driver-side air bag module (inflatorNo.2) resistance nominal)
|
|
|||
RES_F_AB2_P
(Passenger-side air bag module (inflator No.2) resistance nominal)
|
|
|||
RES_S_AB_D
(Driver-side side air bag module resistance nominal)
|
ohm
|
Continuous: 0.81–9.85 ohms
|
1C, 1G
|
|
RES_S_AB_P
(Passenger-side side air bag module resistance nominal)
|
ohm
|
Continuous: 0.81–9.85 ohms
|
1K, 1N
|
|
RES_SB_LP_D
(Driver-side lap pre-tensioner seat belt resistance nominal)
|
|
|||
RES_SB_LP_P
(Passenger-side lap pre-tensioner seat belt resistance nominal)
|
|
|||
RES_SB_P_D
(Driver-side pre-tensioner seat belt resistance nominal)
|
ohm
|
Continuous: 0.81–6.42 ohms
|
2C, 2G
|
|
RES_SB_P_P
(Passenger-side pre-tensioner seat belt resistance nominal)
|
ohm
|
Continuous: 0.81–6.42 ohms
|
2K, 2N
|
|
RES_R_PR_D
(Rear pre-tensioner seat belt status)
|
|
|||
RES_R_PR_P
(Rear pre-tensioner seat belt status)
|
|
|||
PCD_A
(Poorly connected detector bar terminal voltage nominal (SAS control module connector A))
|
mV
|
• Normal connected: 270.9 mV or less
• Poor connected: 3173.4 mV or more
|
1a, 1b
|
|
PCD_B
(Poorly connected detector bar terminal voltage nominal (SAS control module connector B))
|
mV
|
• Normal connected: 270.9 mV or less
• Poor connected: 3173.4 mV or more
|
2a, 2b
|
|
PCD_C
(Poorly connected detector bar terminal voltage nominal (SAS control module connector C))
|
mV
|
• Normal connected: 270.9 mV or less
• Poor connected: 3173.4 mV or more
|
3a, 3b
|
|
SEAT_B_D
(Driver-side buckle switch status)
|
Unbuckled/Buckled
|
• Driver-side front seat belt fastened (Driver-side buckle switch off): Buckled
• Driver-side front seat belt not fastened (Driver-side buckle switch on): Unbuckled
|
2U
|
|
SEAT_B_P
(Passenger-side buckle switch status)
|
Unbuckled/Buckled
|
• Passenger-side front seat belt fastened (Passenger-side buckle switch off): Buckled
• Passenger-side front seat belt not fastened (Passenger-side buckle switch on): Unbuckled
|
2W
|
|
VPWR_IGA
(SAS control module power voltage)
|
V
|
Ignition is switched ON: IG1 voltage
|
2AD
|
