ON-BOARD DIAGNOSTIC WIRING DIAGRAM [BCM]

id0902f5067100

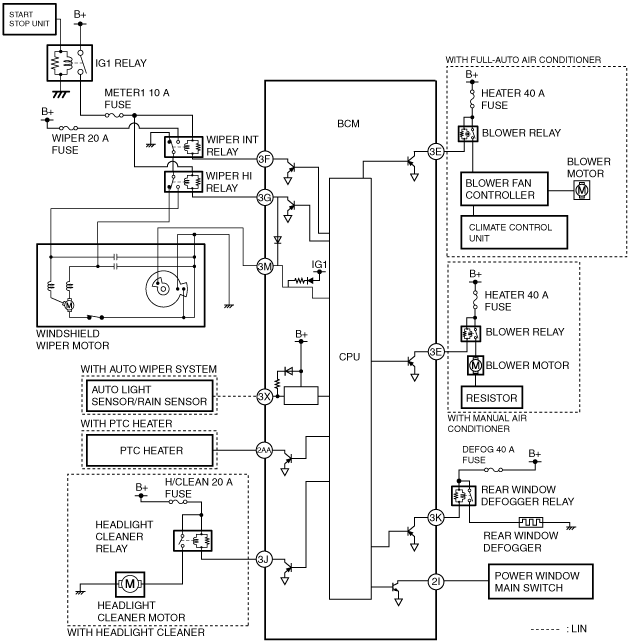

Windshield wiper, rear window defogger, blower motor, power window, headlight cleaner

am2zzn00003912

Front fog light, turn light, brake light

am2zzn00001858

Door lock, liftgate opener

am2zzn00001859

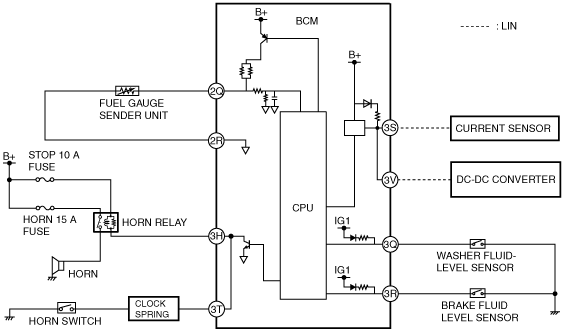

Fuel gauge sender unit, horn, brake fluid level sensor, current sensor, washer fluid-level sensor

am2zzn00001860

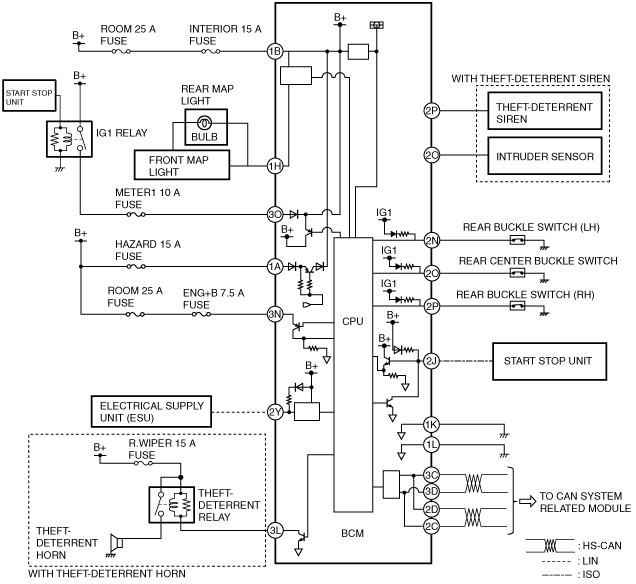

Power supply, LIN communication, ISO communication, CAN system, rear buckle switch, theft-deterrent system

am2zzn00001861
