ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ELECTRICAL SUPPLY UNIT (ESU)]

id0902ff060200

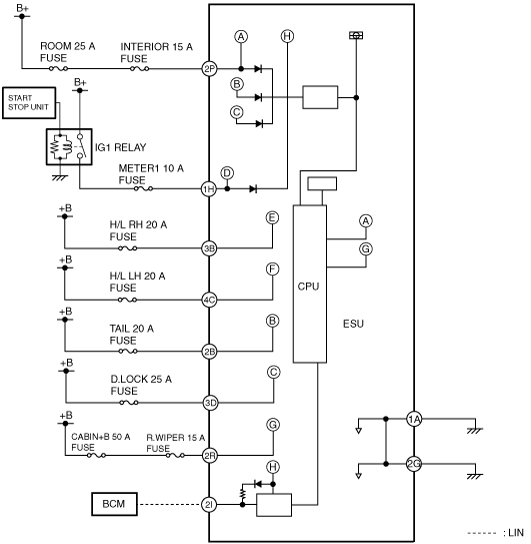

Power supply, earth, LIN communication

am2zzn00001868

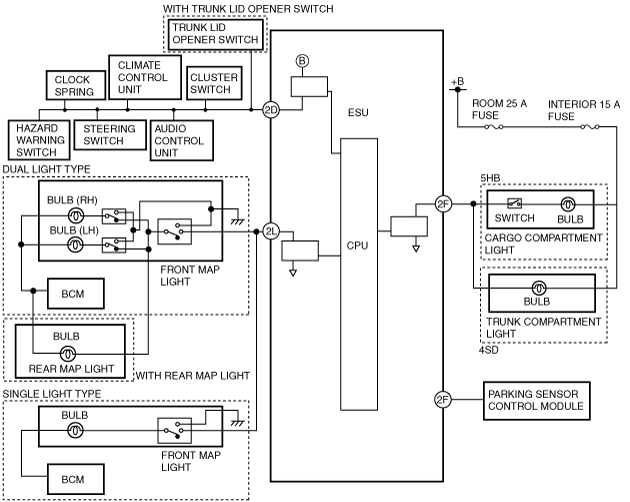

Map light, cargo compartment light

am2zzw00012429

Exterior lighting

am2zzn00001870

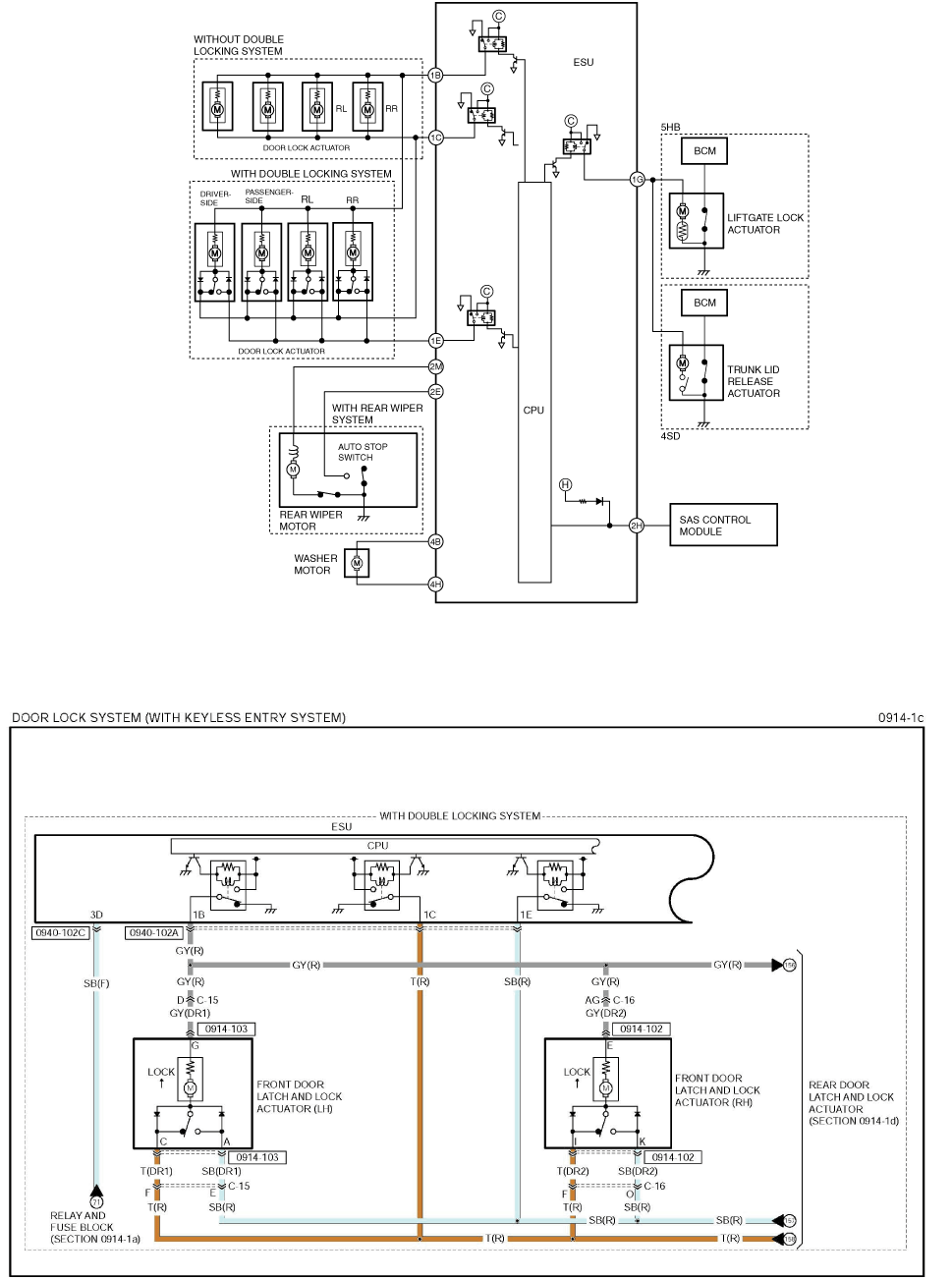

Door lock, rear wiper

am2zzn00001871
