GLASS/WINDOWS/MIRRORS

id091200012000

Outline

• A power window system has been adopted with which the door glass can be opened/closed electrically by operating the power window main switch or the power window sub switches.

• A power outer mirror system has been adopted with which the outer mirrors can be operated remotely using the power outer mirror switch.

• A rear window defogger has been adopted with which rear window glass fogging can be cleared by pressing the rear window defogger switch.

Glass/window/mirror specification

	UV protection glass	Tinted glass
Windshield	—	—
Rear window glass	×^*	×^*
Front door glass	—	—
Rear door glass	×^*	×^*
Outer mirror glass	—	—

* :Availability depends on vehicle specification.

Structural View

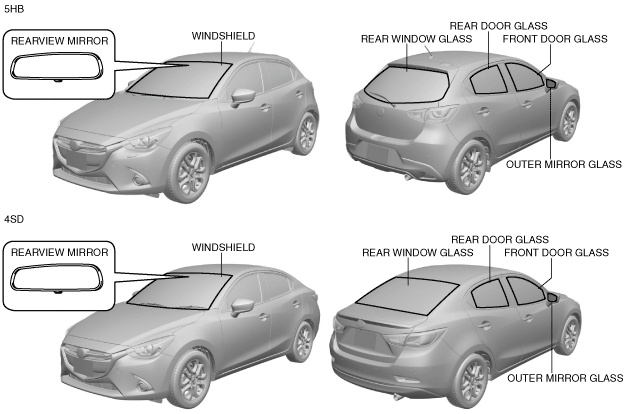

Glass/window/mirror

am2zzn00003760

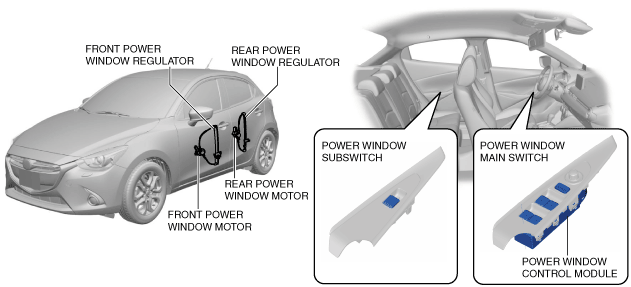

Power window system

am2zzn00001971

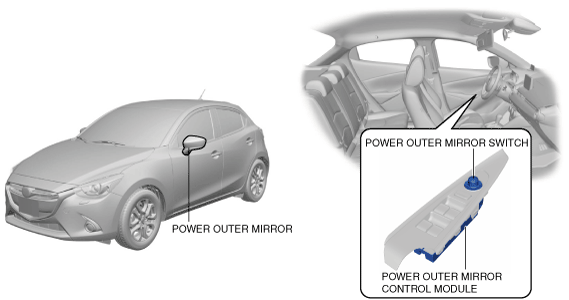

Power outer mirror system

am2zzn00001972

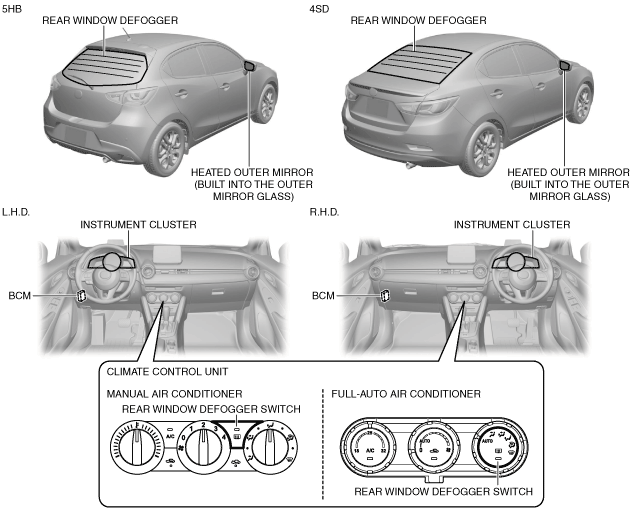

Rear window defogger

am2zzn00003761
